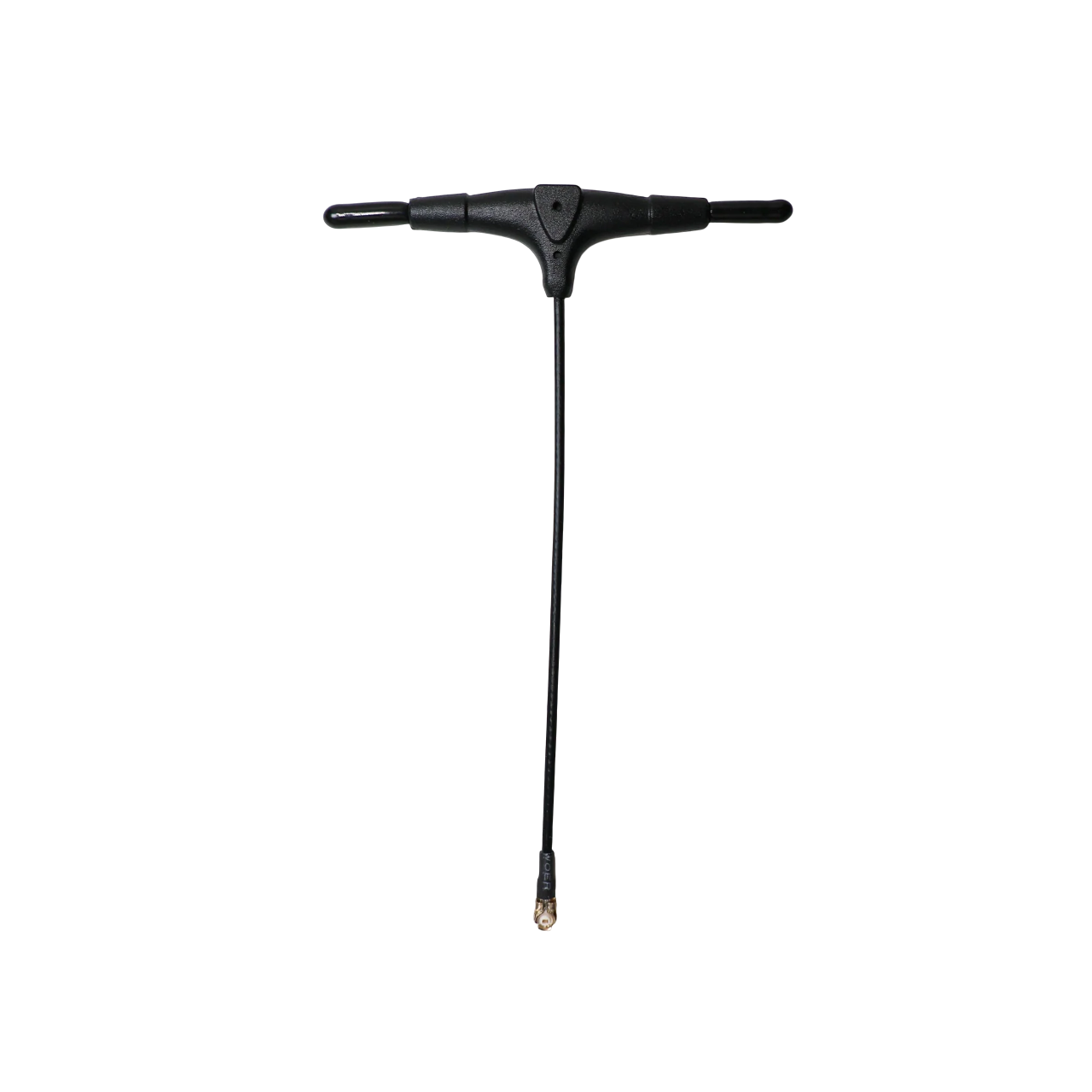

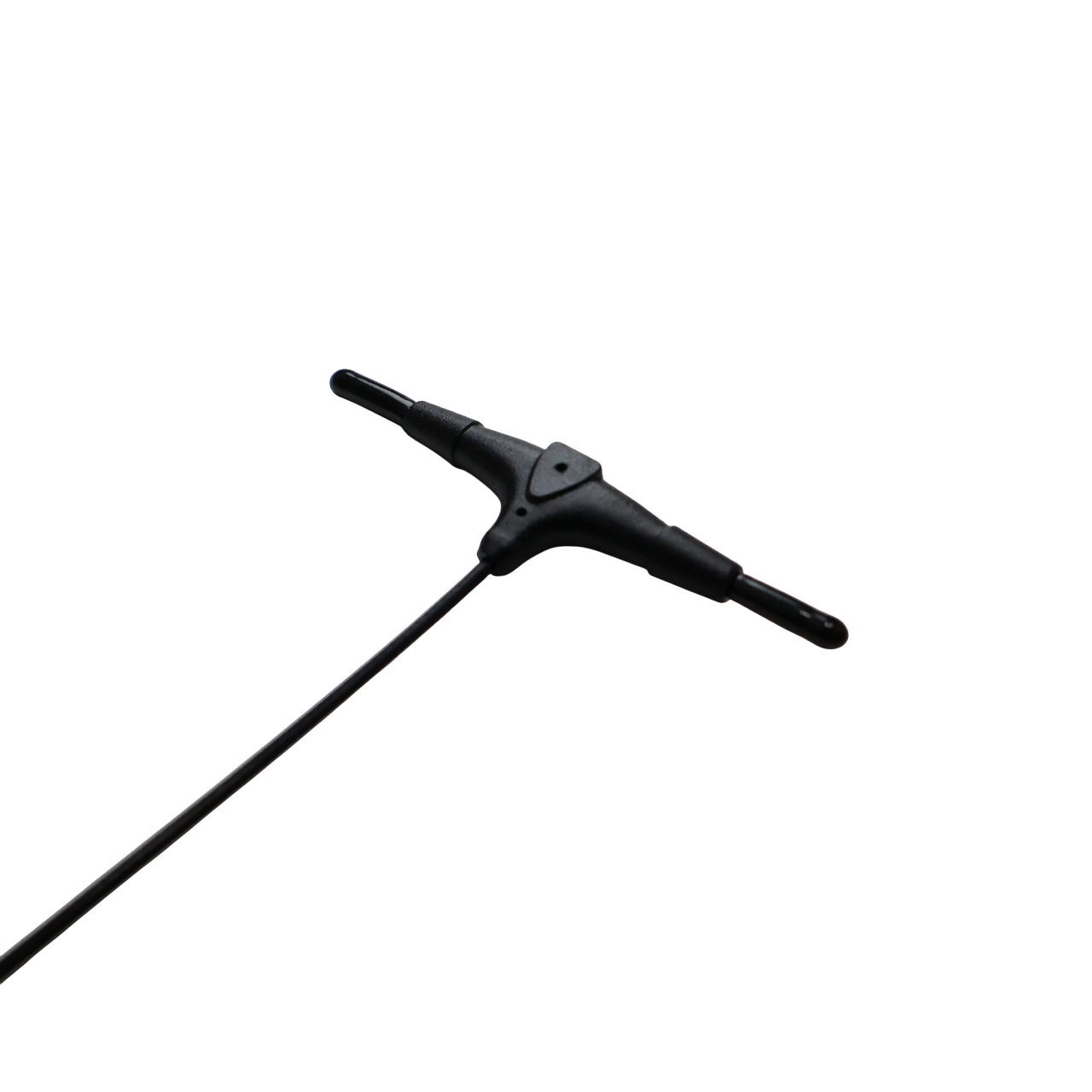

Zerodrag UFL 2.4Ghz T Antenna for ELRS Receivers

Weight 15 g
Connector Type UFL
Frequency 2.4 GHz

Original price was: ₹650.00.Current price is: ₹599.00.

Authorized Dealer of Top Drone Brands

Repair and Maintenance Support

Fast Shipping Across India

1 in stock

1 in stock

Compare
Add to wishlist
15 People watching this product now!

Payment Methods:

Description :

Spare antenna for 2.4GHz ELRS Rx. Enhance your wireless communication with the rugged UFL 2.4GHz T Antenna, specially designed for ZERODRAG NEXUS1 and similar 2.4GHz ELRS receivers. This compact and efficient antenna is perfect for ensuring stable and strong signal transmission, with its precise frequency range and optimal design for horizontal polarization. Ideal for applications where reliable communication is critical, it’s built to perform in diverse environmental conditions, thanks to its rugged construction.

SPECIFICATIONS:

  • Cable Length: 70mm
  • Connector Type: UFL
  • Weight: 2.2g (with 70mm cable)
  • Dimensions: 55mm wide x 90mm high
  • Frequency Range: 2400-2500MHz, specifically tailored for 2.4GHz signals

FEATURES:

  • New and improved version with a Heat-shrink tube on the connector side for extra durability.
  • Polarization Mode: Horizontal Polarization, enhancing signal reception and transmission quality
  • Input Impedance: 50Ω, standard for most communication equipment
  • VSWR (@ 5800MHz): ≤2.0, ensuring minimal signal reflection and loss
  • Maximum Input Power: 50W, suitable for high-power applications
  • Operating Temperature Range: -40 to 60°C, designed to withstand extreme
    conditions

PACKAGE INCLUDES:

  • 1x Zerodrag UFL 2.4Ghz T Antenna
