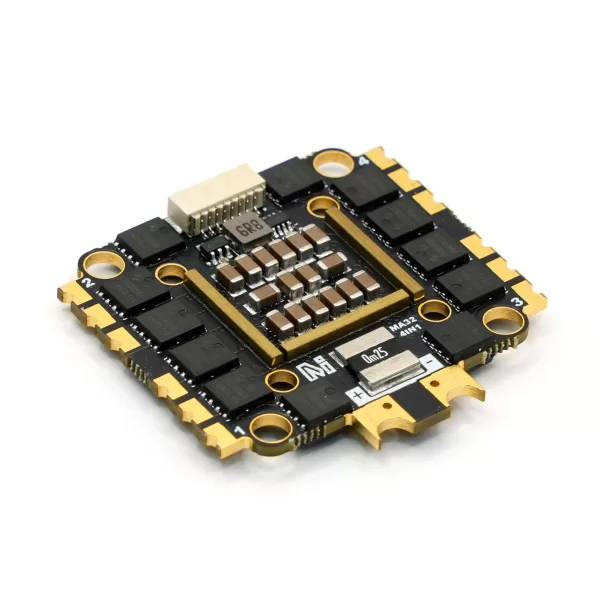

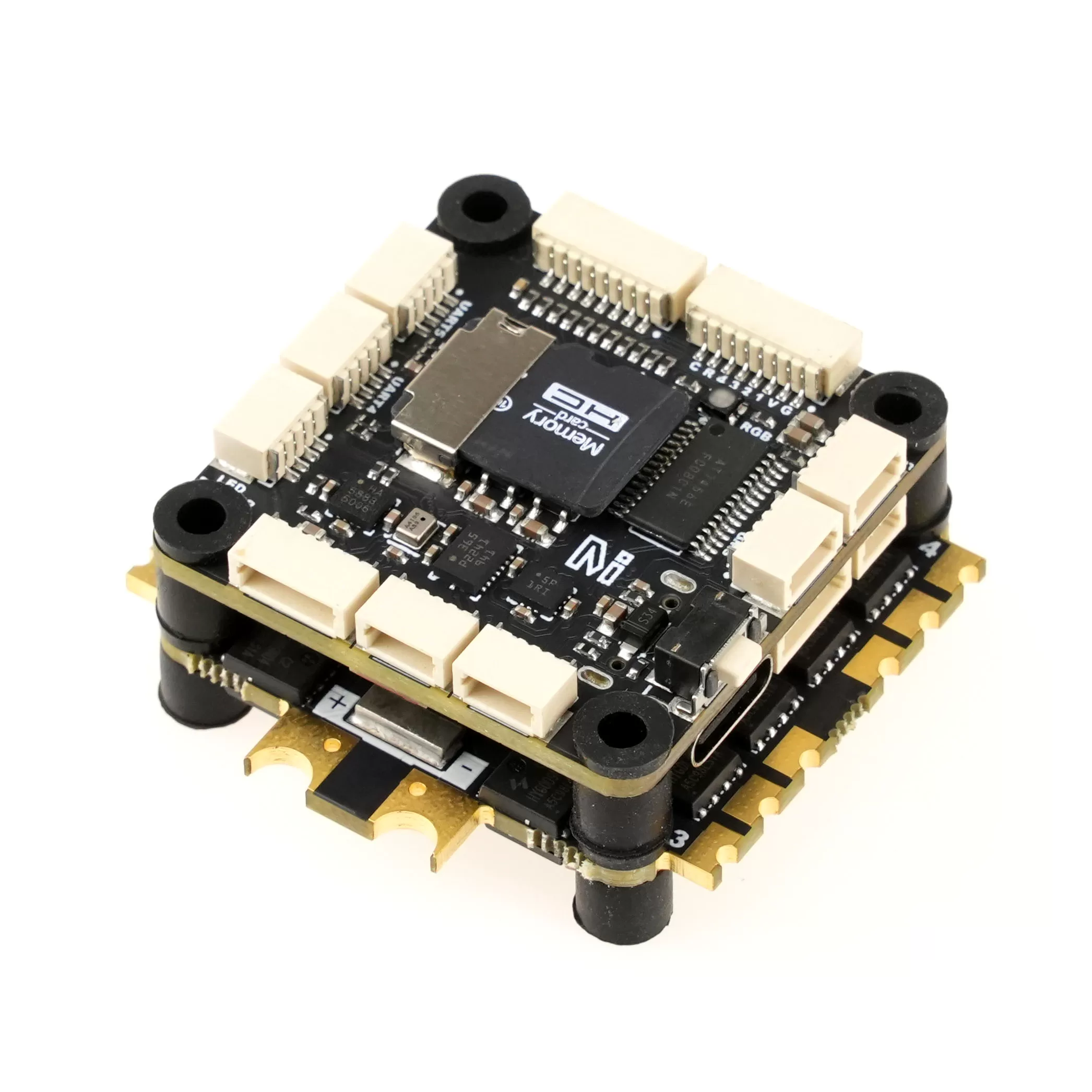

MicoAir743 V2 AM32 55A 30×30 FC&ESC Stack
The MicoAir743 V2 AM32 55A 30×30 FC&ESC Stack is a high-performance flight controller and 4-in-1 ESC combo. Designed primarily for 2–6S setups, it integrates an H743 processor, dual IMUs for redundancy, onboard Bluetooth telemetry, and a 32-bit 55A ESC. It comes pre-flashed with ArduPilot or PX4 firmware and natively supports INAV and Betaflight.
Original price was: ₹12,500.00.₹12,000.00Current price is: ₹12,000.00.
Authorized Dealer of Top Drone Brands
Repair and Maintenance Support
Fast Shipping Across India
1 in stock
1 in stock
20
People watching this product now!
Payment Methods:
Description :
Features
-
Dual IMU Redundancy: Features both BMI088 and BMI270 gyros/accelerometers for enhanced flight stability.
-
Wireless Parameter Adjustment: Integrated Bluetooth module allows tuning via smartphone ground station apps.
-
High-Speed Processing: Powered by an STM32H743 main controller running at 480 MHz.
-
AM32 32-Bit ESC: Pre-loaded with AM32 firmware supporting bidirectional DShot and high-efficiency performance.
-
Multi-Firmware Support: Compatible with ArduPilot, PX4, Betaflight, and INAV.
-
Peripherals & HD VTX Ready: Features a plug-and-play connector for HD VTX (DJI Air Unit) and a MicroSD card slot for blackbox log recording.
Specifications
| Component | Specification |
| MCU | STM32H743VIH6 @ 480 MHz |
| Gyro / Accel | Dual IMU (BMI088 + BMI270) |
| Barometer | SPL06 |
| Magnetometer | QMC5883L |
| OSD Chip | AT7456E |
| Input Voltage | 2–6S LiPo (6V – 27V) |
| BEC Output | 5V / 3A and 12V / 3A |
| Hardware Interfaces | 8x UARTs, 10x PWM Channels, 1x I2C, 1x SWD |
| ESC Continuous Current | 55A per channel |
| ESC Firmware | 32-bit AM32 |
| ESC MOSFETs | 40V 0.75mΩ Ultra-low resistance MOS |
| Mounting Pattern | 30.5mm × 30.5mm (M4) |
| Dimensions | 36mm × 36mm × 8mm |
