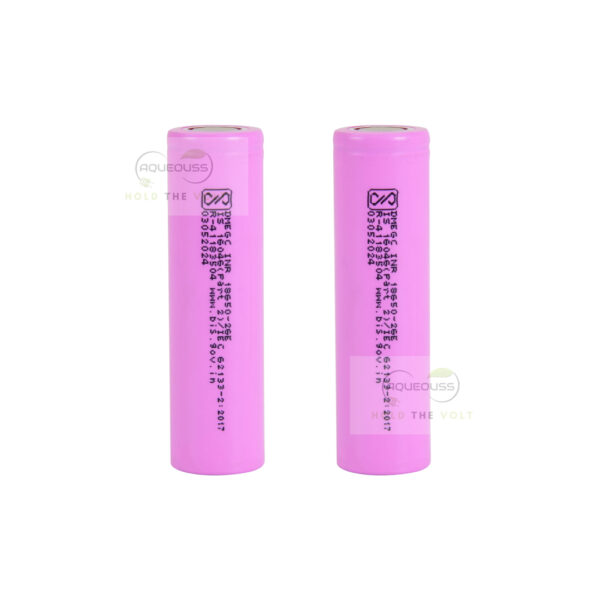

DMEGC 2600mAh INR18650-26E 3.7V Li-Ion Cells Original price was: ₹700.00.Current price is: ₹650.00.
Back to products

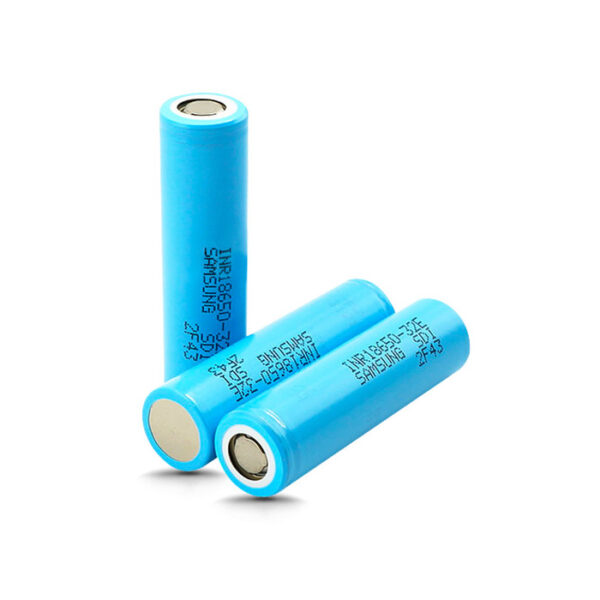

Samsung INR18650 32E 3200mAh 6.4A Battery Original price was: ₹1,200.00.Current price is: ₹1,100.00.
-2%
Click to enlarge

SpeedyBee Mario 5 XH O4 PRO Version

  1. Strong head, clear view.
  2. Stable arms, less twist.
  3. Dual power, balanced.
  4. Easy receiver setup.

Original price was: ₹8,200.00.Current price is: ₹7,999.00.

Authorized Dealer of Top Drone Brands

Repair and Maintenance Support

Fast Shipping Across India

Compare
Add to wishlist
14 People watching this product now!

Payment Methods:

Description :

The SpeedyBee Mario 5 XH O4 PRO Version  is engineered for performance and versatility, featuring a high-strength aviation aluminum alloy head that not only protects the lens but also optimizes the DJI O3 VTX ultra-wide-angle view, minimizing the “jello effect” for a consistently steady image. Its unique carbon plate arm support structure significantly enhances body stability and reduces twisting, while also providing space for capacitor installation. The frame offers a power dual-input method for easy center of gravity adjustment, along with integrated sockets and antennas for a clean build. A dedicated receiver installation space at the rear simplifies frequency binding. Furthermore, the SpeedyBee Mario 5 XH O4 PRO Version  encourages personalization with diverse open-source 3D models and includes protective armor that shields the FC and enhances DJI O3 heat dissipation, ensuring optimal cooling

Features:

  1. High-Strength Alloy Head: Protects the lens, Optimizes DJI O3 VTX ultra-wide-angle view, Minimizes “jello effect.”
  2. Unique Carbon Plate Arm Support: Enhances body stability, Minimizes twisting, Accommodates capacitor installation.
  3. Power Dual-Input Method: Selectable dual main power input, Easy center of gravity adjustment, Integrated socket and antenna.
  4. Receiver Installation Space: Dedicated rear bottom area, Easy frequency binding.
  5. Diverse Open-Source 3D Models: Customizable with various 3D models.
  6. Frame Protection Armor: Protects the FC (Flight Controller), Enhances DJI O3 heat dissipation, Recessed Gopro Mount, lowers the center of gravity.

Specifications:

Item Type: Accessory
Model: Drone Frame
Material: Aluminium Alloy ( Head)
Thickness of Arms 6mm
Thickness (mm): Top Plate Thickness:2.5mm(T300 3K), Middle Plate Thickness:2.0mm(T300 3K), Bottom Plate Thickness:2.5mm(T300 3K)
Additional Specs.: Battery Anti-Slip Pad: Silicone 3mm, Motor Spring Hole Position: Φ8mm, Compatible Propeller Size : Max 5.1 Inch, Motor Mounting Hole Distance : 16-19mm, FC Mounting Hole:30.5×30.5(M3), Internal Mounting Height : 23-31mm, Receiver Installation Space :25*13*6mm, Suitable Capacitor Size : Φ10mm*20mm, GPS Installation Size : 18*18*7
VTX Mounting Holes 20×20(M2)
Wheelbase 226 mm
Shipping Weight 0.238 kg
Shipping Dimensions 23 × 20 × 6 cm

Package Includes:

1 x DJI 04 Cooling Side Plate L 1 x DJI 04 Cooling Side Plate R 1 x Mario 5 250mm strap 1 x Mario 5 Stack side plate (PC) L 1 x Mario 5 Stack side plate (PC) R 2 x Mario 5 RGB light strip 4 x Motor line protection tube 40mm 1 x Stack side plate LR 4 x M2*10 Hex Socket Cap Screws 4 x M2’4 Screw 2 x M2*7 Screw 1 x DJI Antenna Mount
