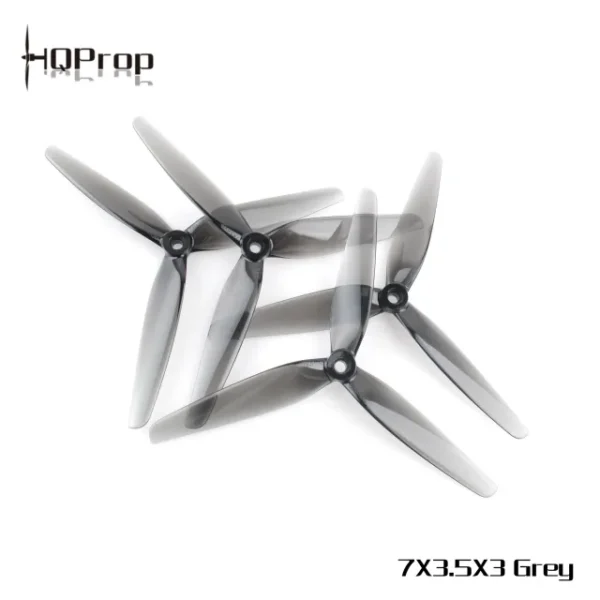

HQProp 7X3.5X3 Light Grey (2CW+2CCW)-Poly Carbonate Original price was: ₹1,500.00.Current price is: ₹999.00.
Click to enlarge

SH CineFlow 5 O4 6S HD – RTF(G3)

Freestyle| CineFlow5| SH series

Authorized Dealer of Top Drone Brands

Repair and Maintenance Support

Fast Shipping Across India

Compare
Add to wishlist
10 People watching this product now!

Payment Methods:

Description :

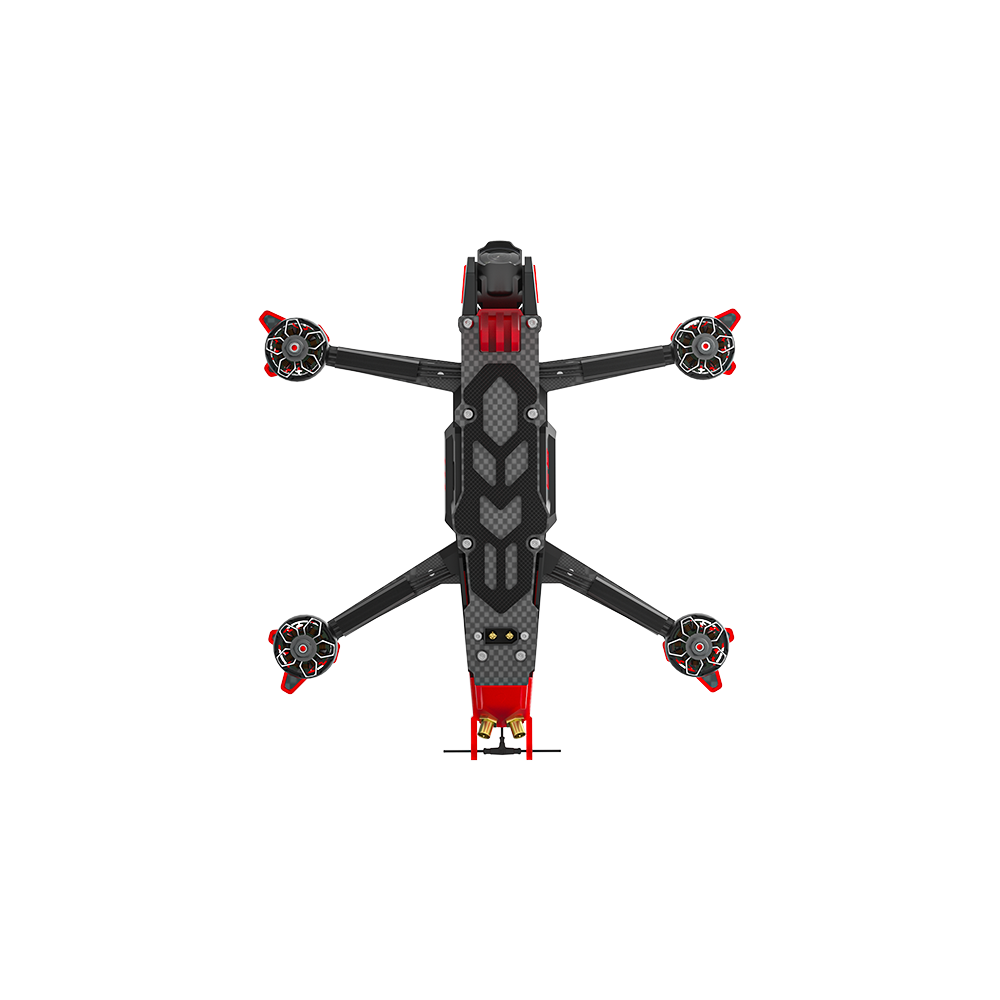

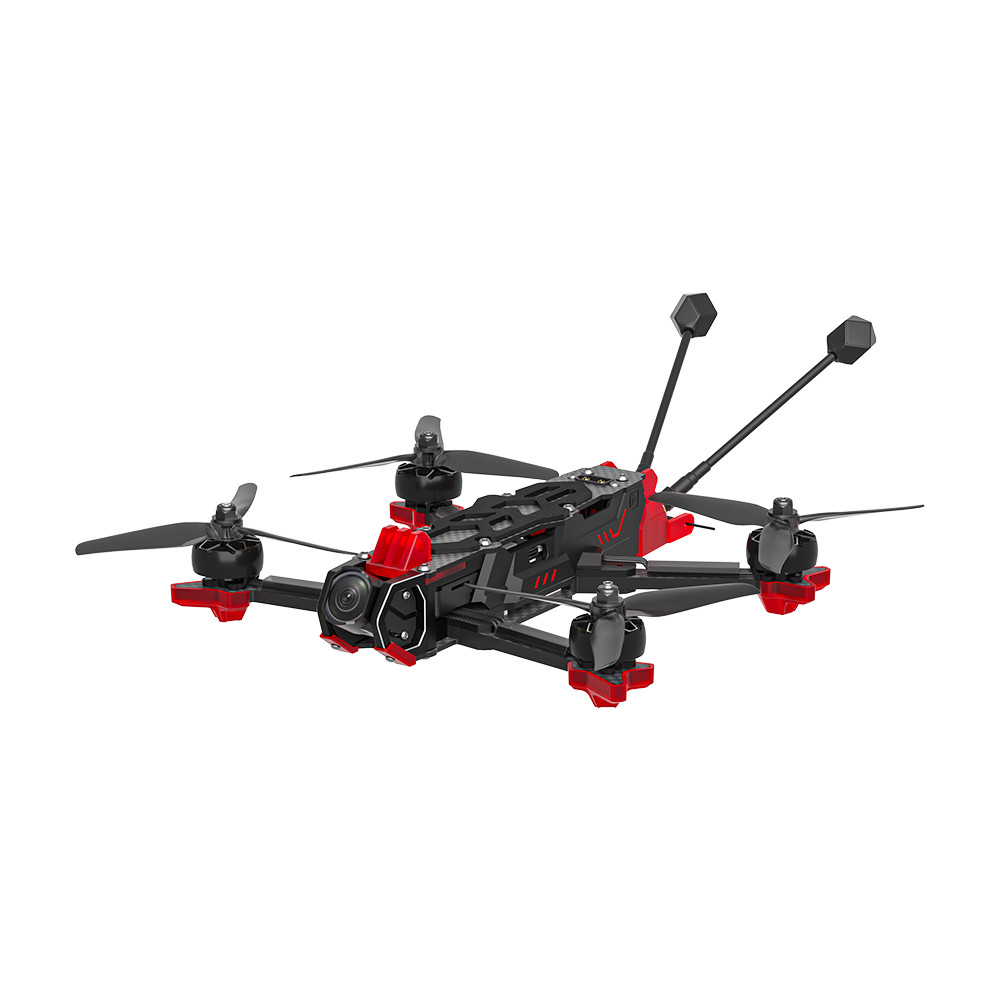

iFlight’s new generation FPV drone, the 5-inch cinematic freestyle CineFlow 5, combines sleek design, easy maintenance, and a high-performance electronics system. Designed for immersive FPV experiences and professional video recording, CineFlow 5 delivers exceptional flight performance and cinematic-quality footage. Whether you’re tackling freestyle tricks, high-speed pursuits, or long-range filming, CineFlow 5 is engineered to meet diverse flying needs with precision and reliability.

Specifications

Product Name: CineFlow 5 O4 HD BNF

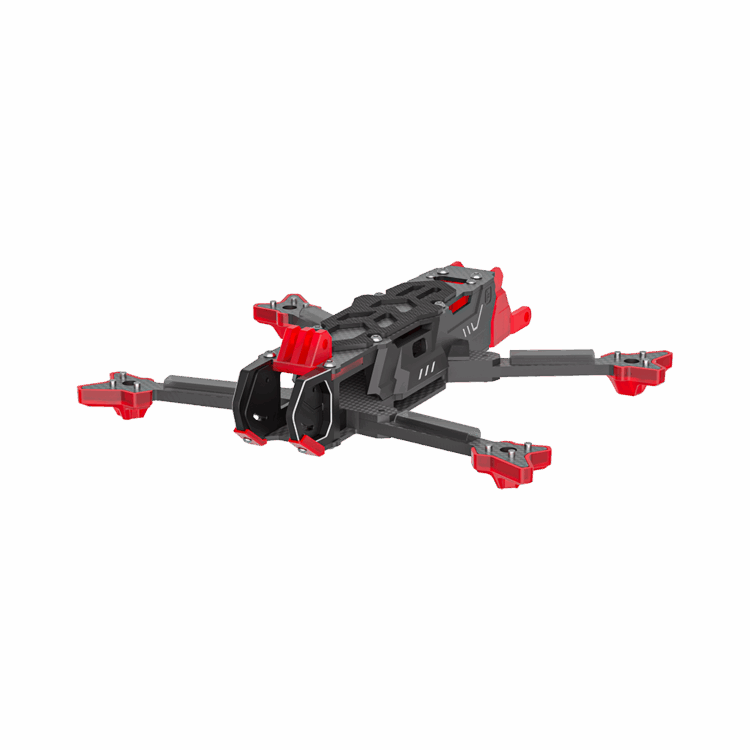

Geometry: H-shaped

FC: BLITZ Mini F7 Flight Controller

ESC: BLITZ Mini E55R 4-IN-1 ESC

Video Transmission: DJI O4 Air Unit Pro

Frame wheelbase: 222mm

Motor: XING2 2207 2050KV motors

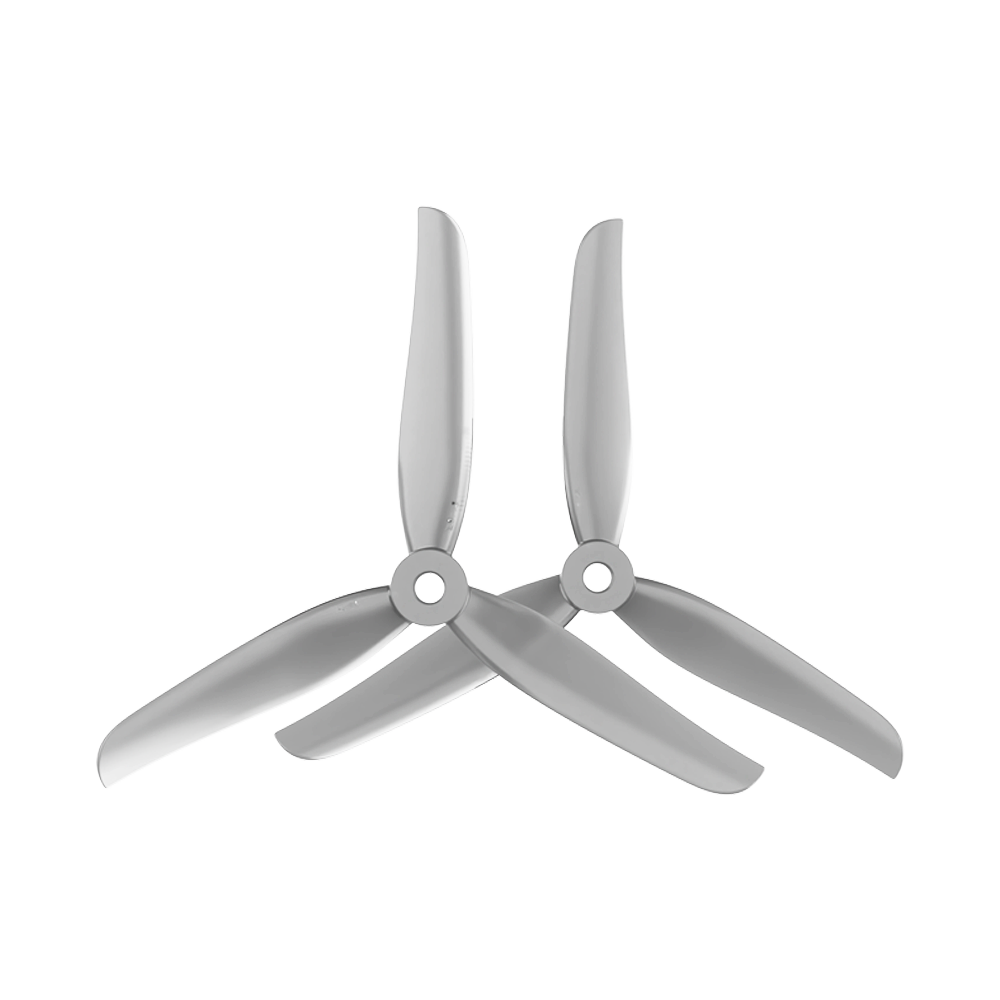

Prop: Nazgul F5 propellers

Dimensions (L×W×H): 213*209*42mm

Weight: 499±5g

Takeoff Weight: Approx. 741±5g (With 6S 1400mAh Battery)

Max Speed: 190 km/h

Maximum Takeoff Altitude: 7000 m

Max Hover Time: Approx. 12 min

Max Flight Distance: 5 km

Operating Temperature Range: -20° to 40° C

Antennas: Dual Antennas

GNSS： GPS+SBAS+Galileo+QZSS+Glonass



Video Transmission

Product Name: DJI O4 Air Unit Pro

Image Sensor: 1/1.3-inch

Lens: FOV: 155°

ISO: 100-25600

Video Resolution: 1080p/100fps H.265

Video Format: MP4, Max Video Bitrate: 130Mbps

Color Mode: Normal Mode/D-Log M

Stabilization: RockSteady 3.0+ ; Stabilization function off (When RockSteady is enabled, the shooting angle only supports standard.)

Live View Quality: 1080P@100fps

Operating Frequency: 5.170-5.250 GHz  & 5.725-5.850 GHz

Transmitter Power (EIRP): 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC))

Max Video Transmission Range: With DJI Goggles 3/DJI Goggles N3: 15 km (FCC), 8 km (CE), 8 km (SRRC)

Communication Bandwidth: Max 60 MHz

Antenna: Dual antennas

Built-in Storage: 4GB

Supported SD cards: microSD (up to 512GB)

Operating Temperature: -10° to 40° C

Weight: Air Unit (camera module included): Approx. 32 g

Dimensions: Transmission Module: 33.5×33.5×13 mm (L×W×H)



FPV Radio

Product Name: Commando 8 ELRS V2 Radio

Weight: 310g (±10g)

Dimentions(LxWxH): L 190 x W 150 x H 51mm

Communication Frequency: 5.725-5.850 GHz

Transmission Power(EIRP):

2.4GHz: FCC: 27 dBm; CE: <14 dBm; SRRC: <19 dBm

900MHz:FCC: 30 dBm; CE: <14 dBm; SRRC: <19 dBm

Operating Current/Volts:  0.6 A @ 7.6 V

Charging Time: 1 hour and 30 mini

Operating Time: Approx. 8 hours

Operating Temperature Range: 0°C  to  40°C (32°F to 104°F)

Charging Temperature Range: 5°C to  40°C (41°F to 104°F)

FPV Goggles

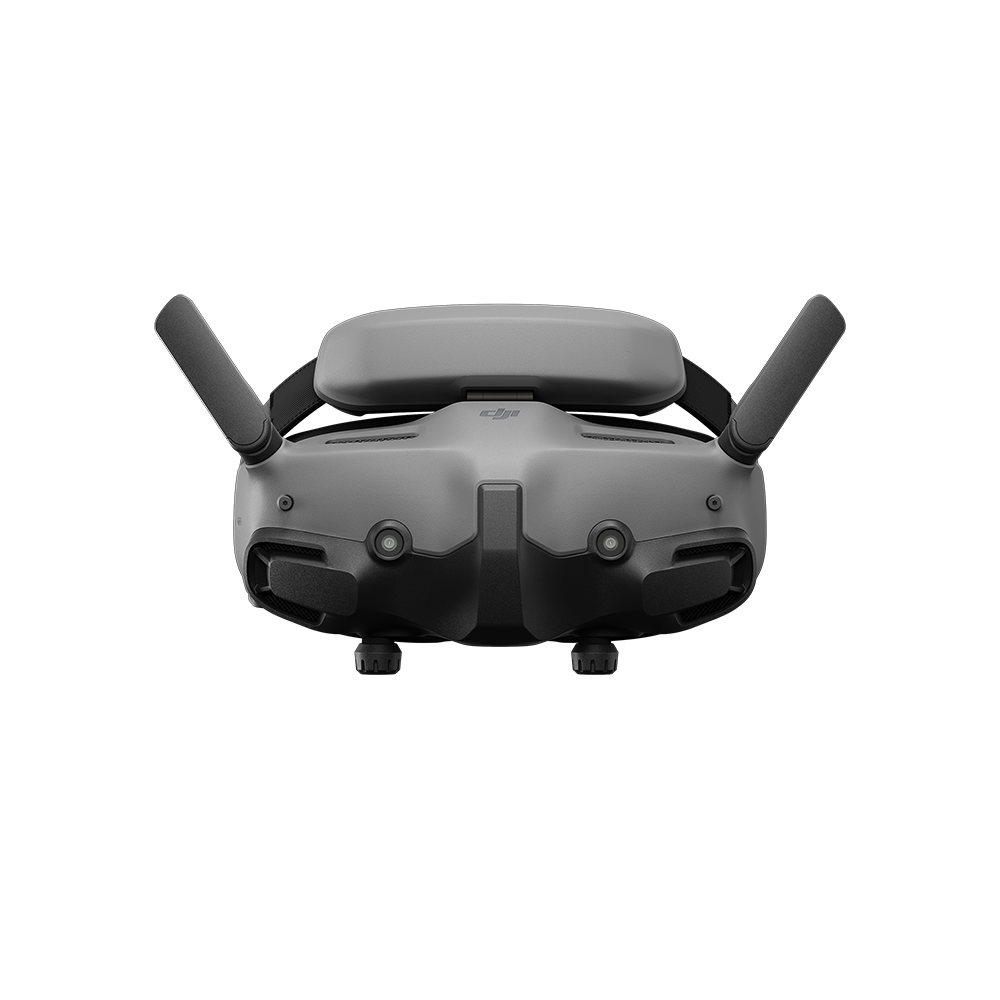

Product Name: DJI Goggles 3

Weight: Approx. 470 g (battery included)

Dimensions (L×W×H): With antennas folded: 170×109×112 mm (L×W×H)

With antennas unfolded: 205×109×112 mm (L×W×H)

Screen Size (single screen): 0.49 inch

Resolution (single screen): 1920×1080

Refresh Rate: Up to 100 Hz

Interpupillary Distance Range: 56-72 mm

Diopter Adjustment Range: -6.0 D to +2.0 D

FOV (single screen): 44°

Communication Frequency: 2.4000-2.4835 GHz; 5.150-5.250 GHz; 5.725-5.850 GHz

Transmission Power (EIRP):

2.4 GHz:< 33 dBm (FCC)< 20 dBm (CE/SRRC/MIC)

5.1 GHz:< 23 dBm (CE)

5.8 GHz:< 33 dBm (FCC)< 30 dBm (SRRC)< 14 dBm (CE)

Max Video Transmission Bitrate: 60 Mbps

Operating Temperature Range: -10°C to 40°C (14°F to 104°F)

Battery Voltage: 5.6-8.4 V

Supported SD Cards: microSD (up to 512 GB)



Packing List

1 x SH CineFlow 5 6S O4 HD BNF

1 x Commando 8 ELRS Radio

1 x DJI Goggles 3

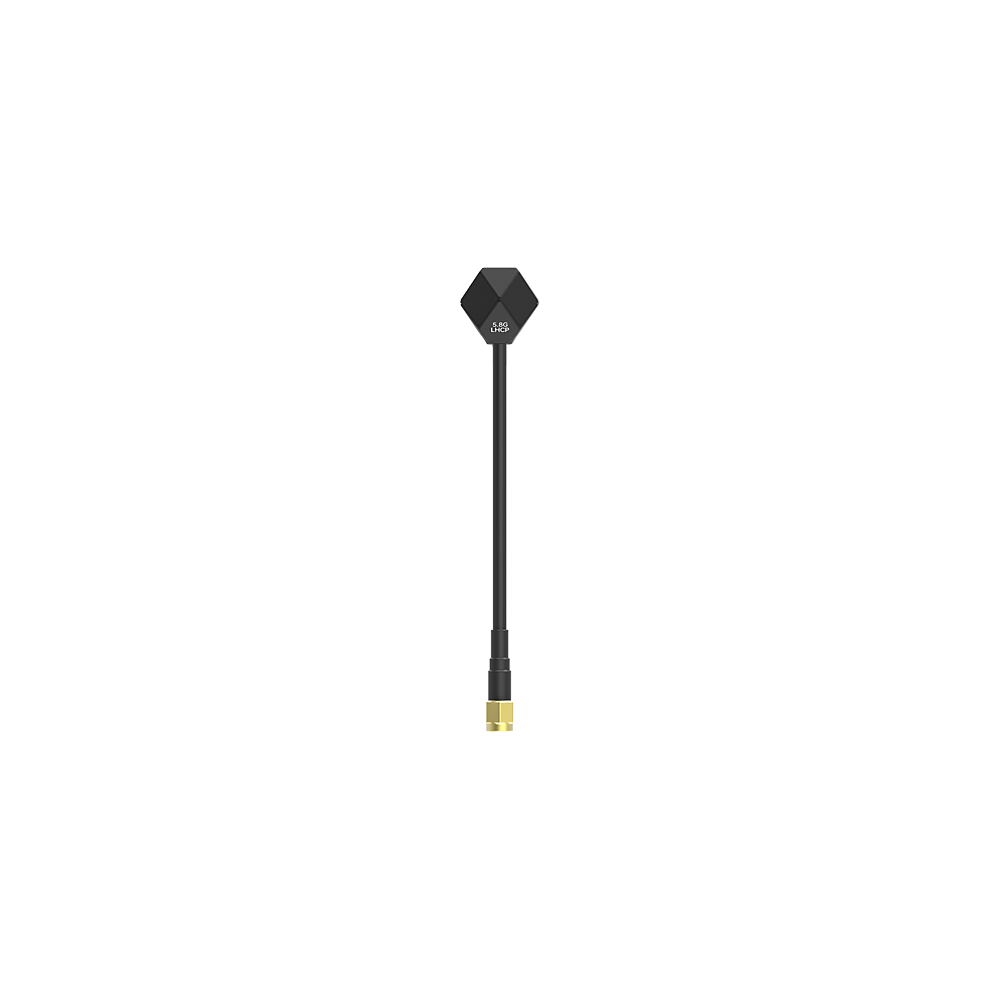

2 x Antennas

1 x Battery pad

2 x propeller(Pairs)

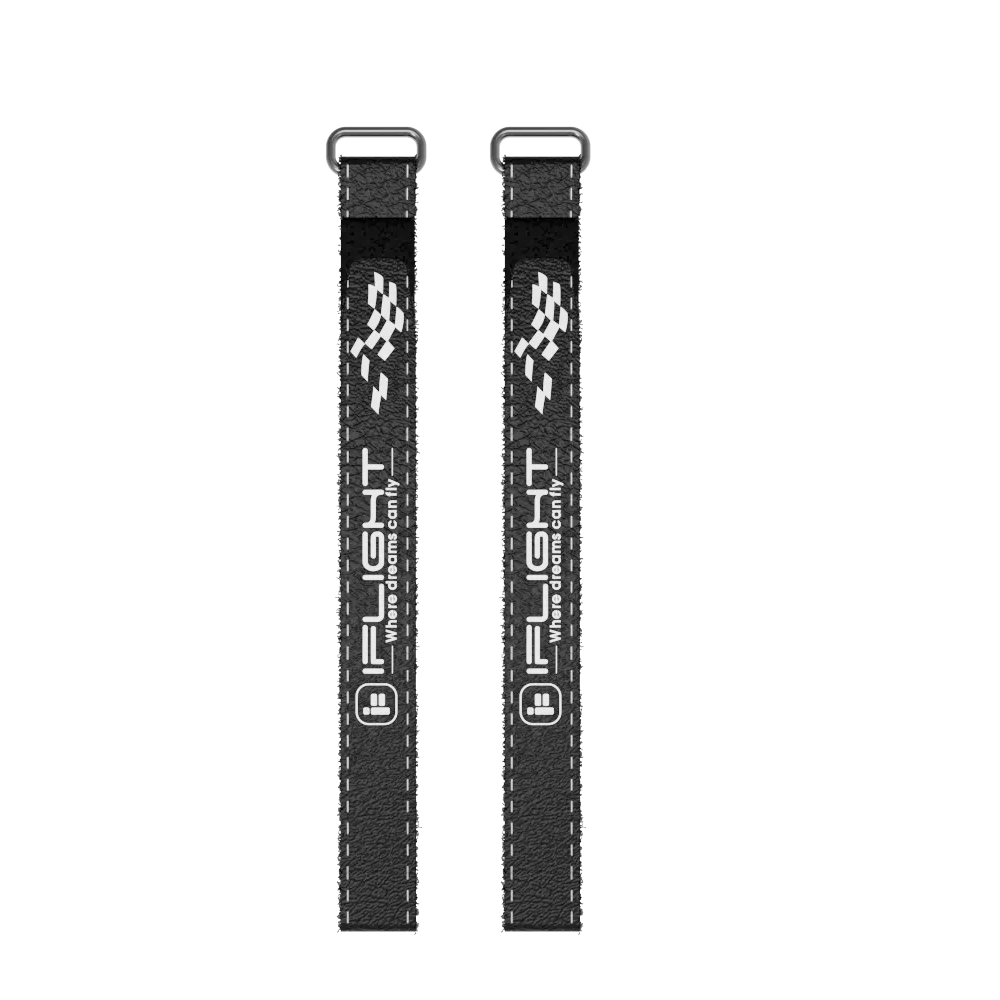

2 x Battery strap
