RadioMaster T8L ELRS

The RadioMaster T8L brings the power of ExpressLRS 2.4GHz into a clean, compact form — and is the first screenless radio controller officially supported by ExpressLRS.

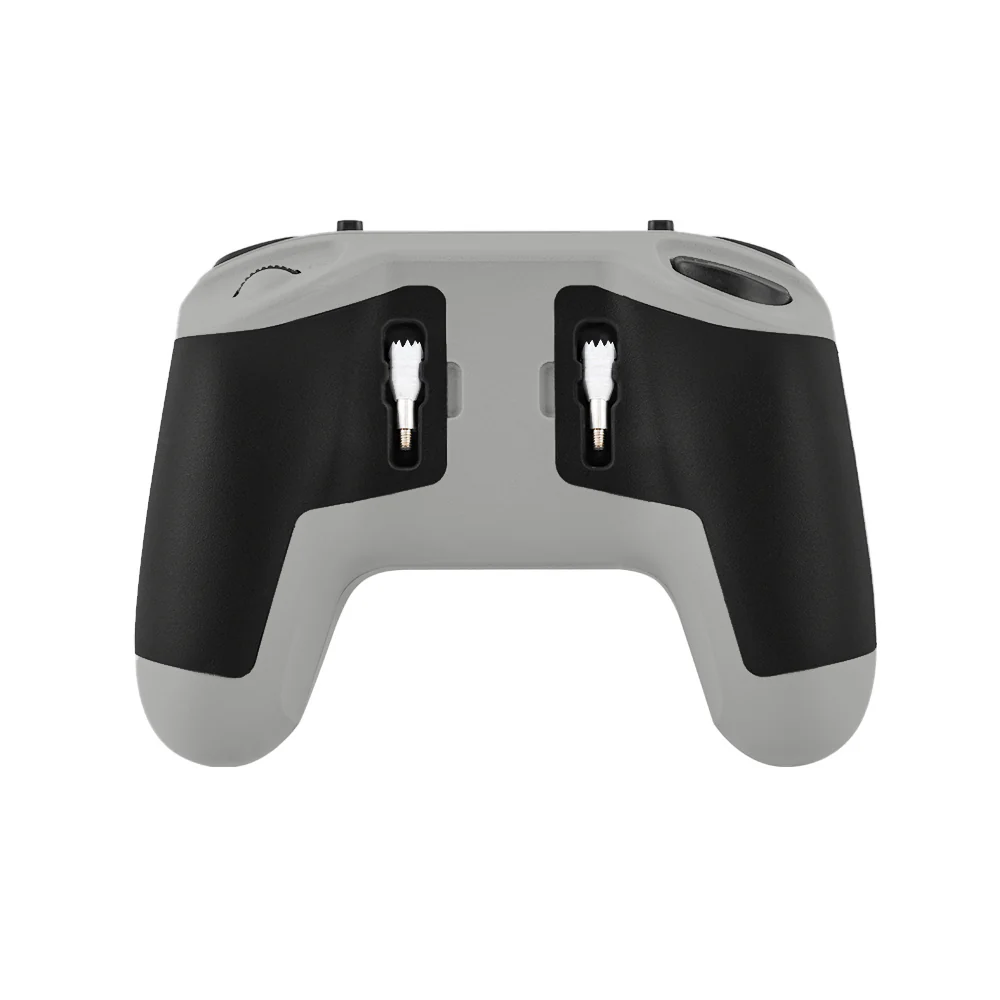

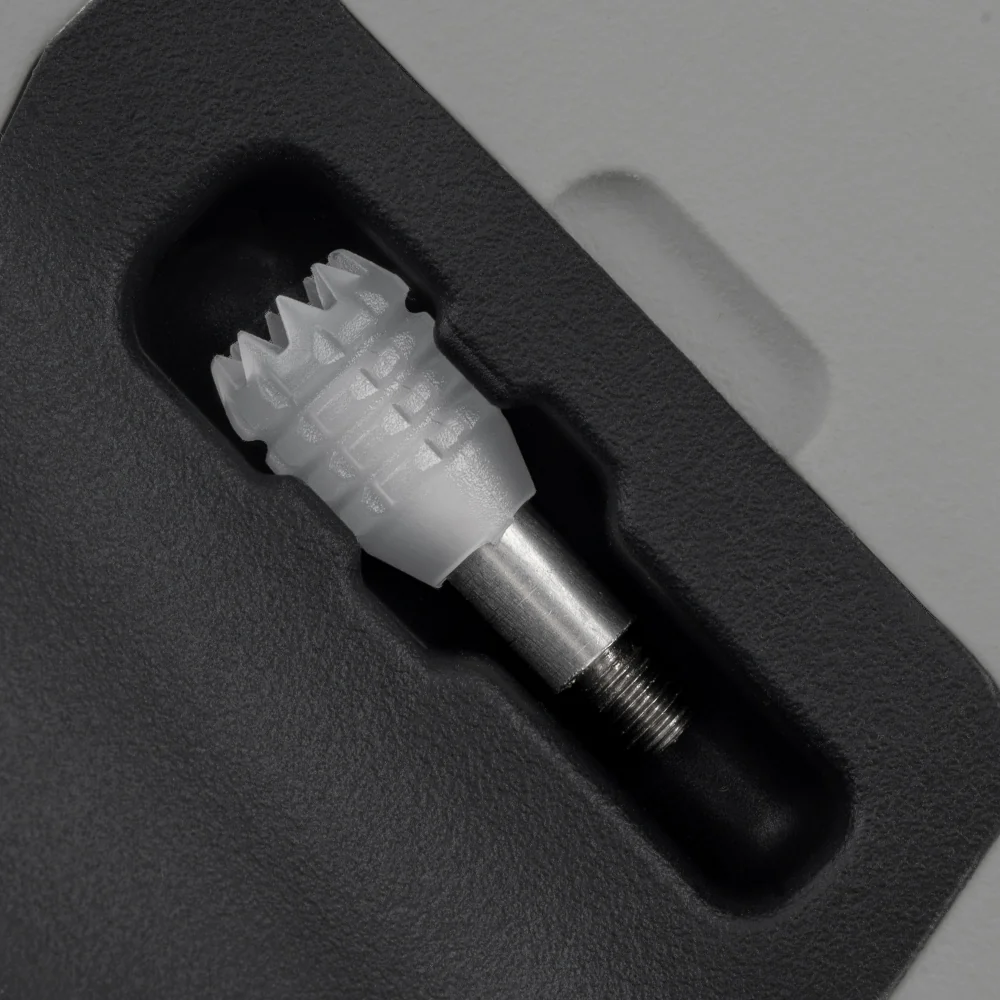

Whether you’re working on compact projects, running simulators, testing configurations, or need a dependable backup controller, the T8L delivers a smooth, streamlined experience. Its compact size and removable gimbal sticks make it easy to travel with, while the straightforward layout and reliable performance suit training, development, demonstrations, and everyday control tasks where consistency matters.

With high-precision quad-bearing Hall-effect gimbals, integrated USB-C charging, and simulator compatibility, the T8L is ready to go right out of the box. Setup is quick and easy through a web-based configuration tool that runs directly in Chrome or Edge — no display or external software required.

Features

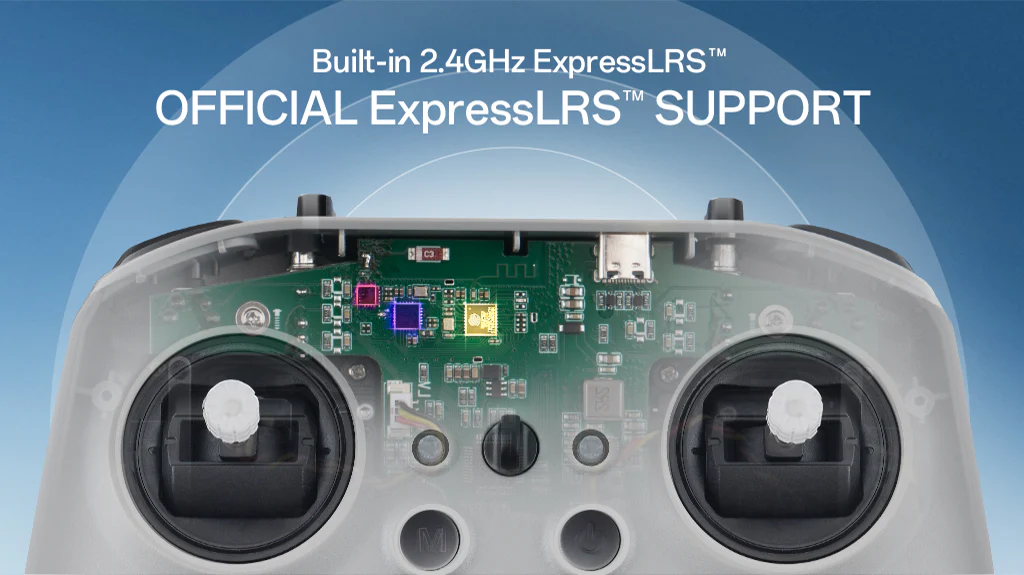

• Built-in ExpressLRS 2.4GHz module
• Single button press binding to any ExpressLRS receiver

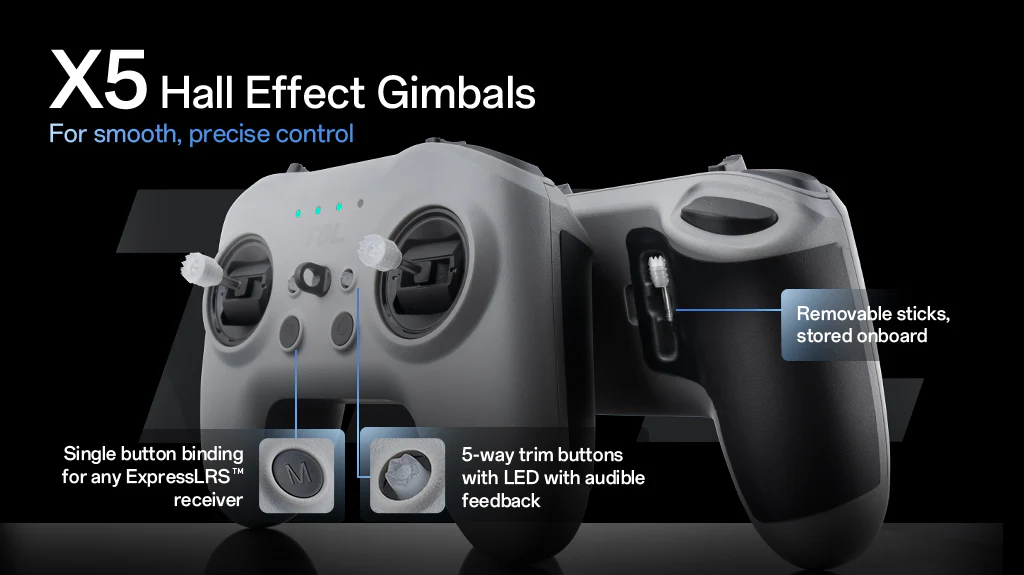

• Quad bearing Hall-effect gimbals for smooth, precise stick control
• 5-way trim buttons with LED and audible feedback

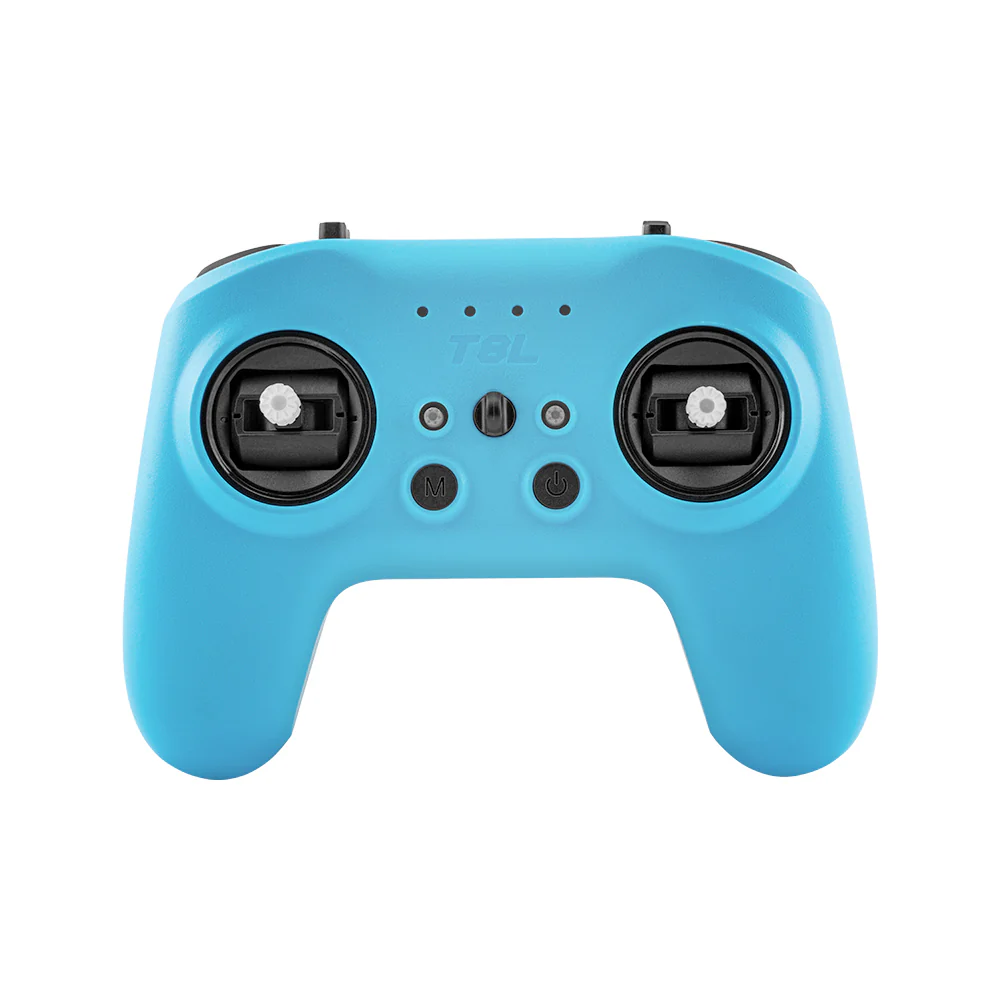

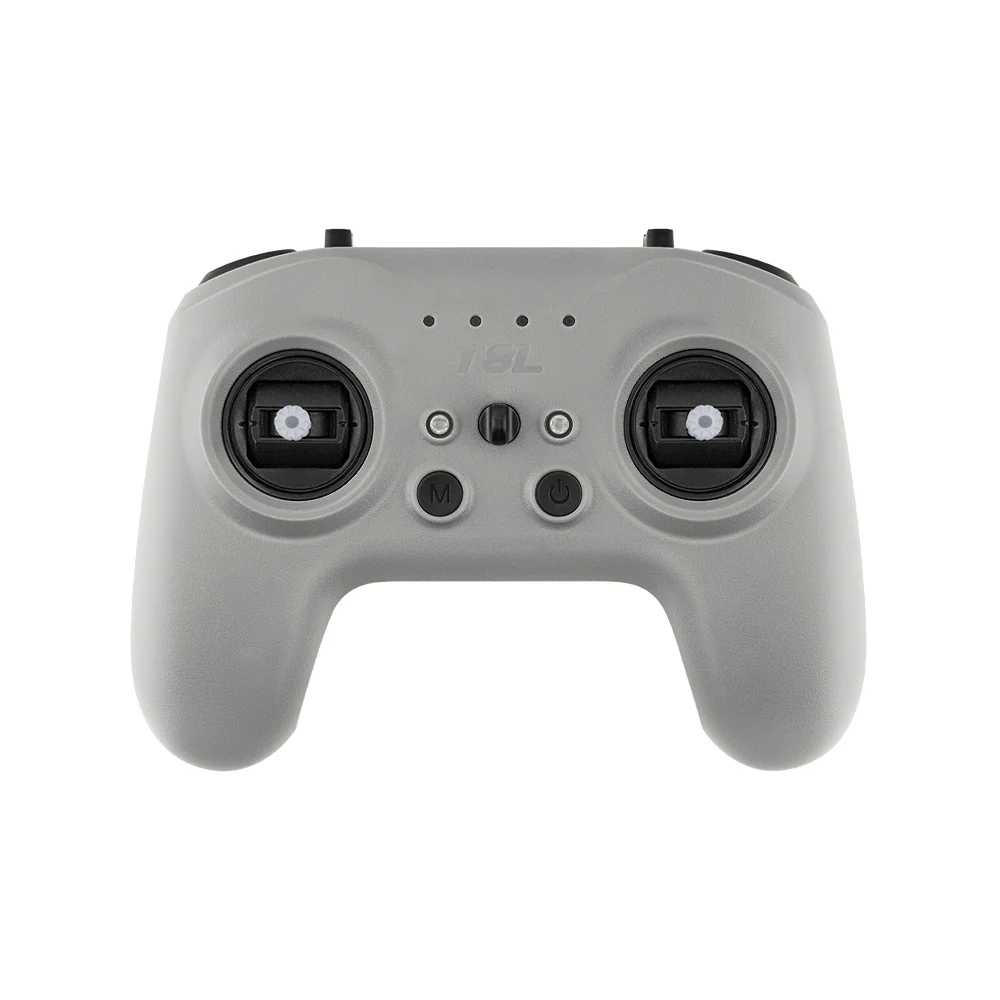

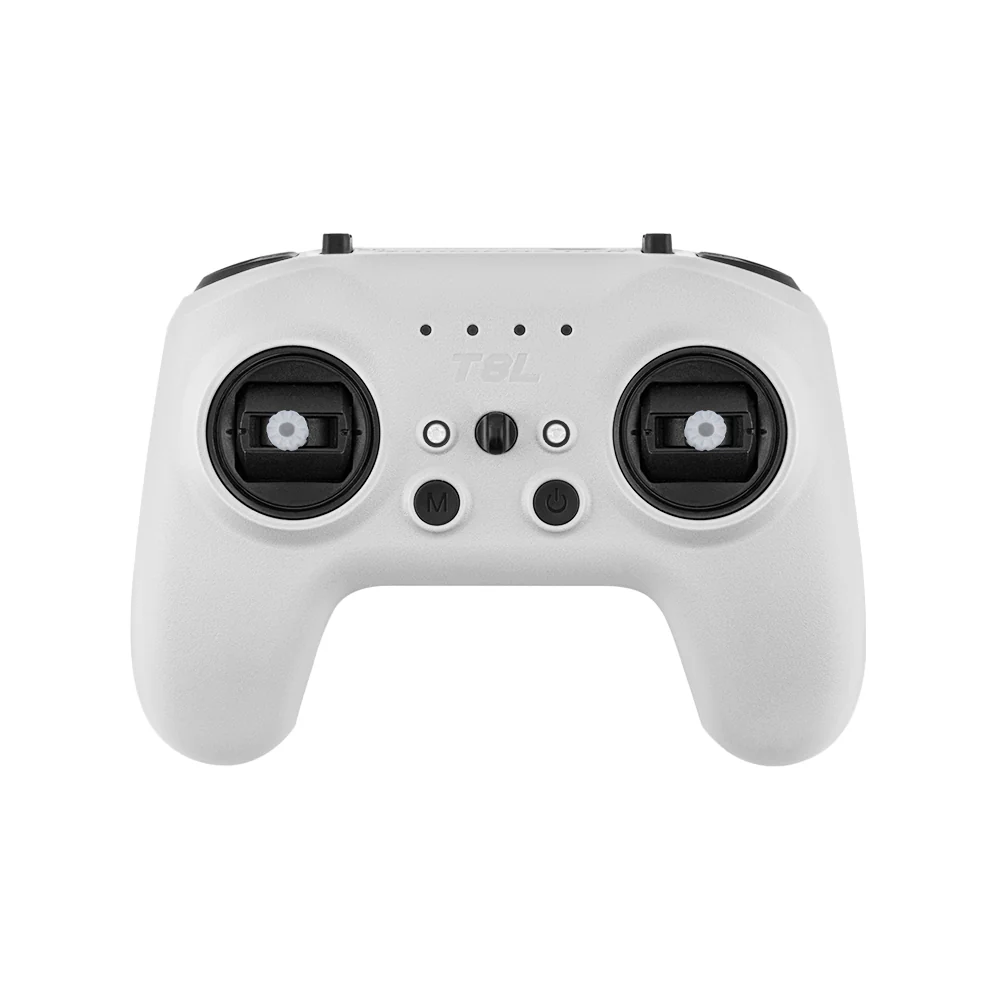

• Available in three colors: Blue, White and Grey

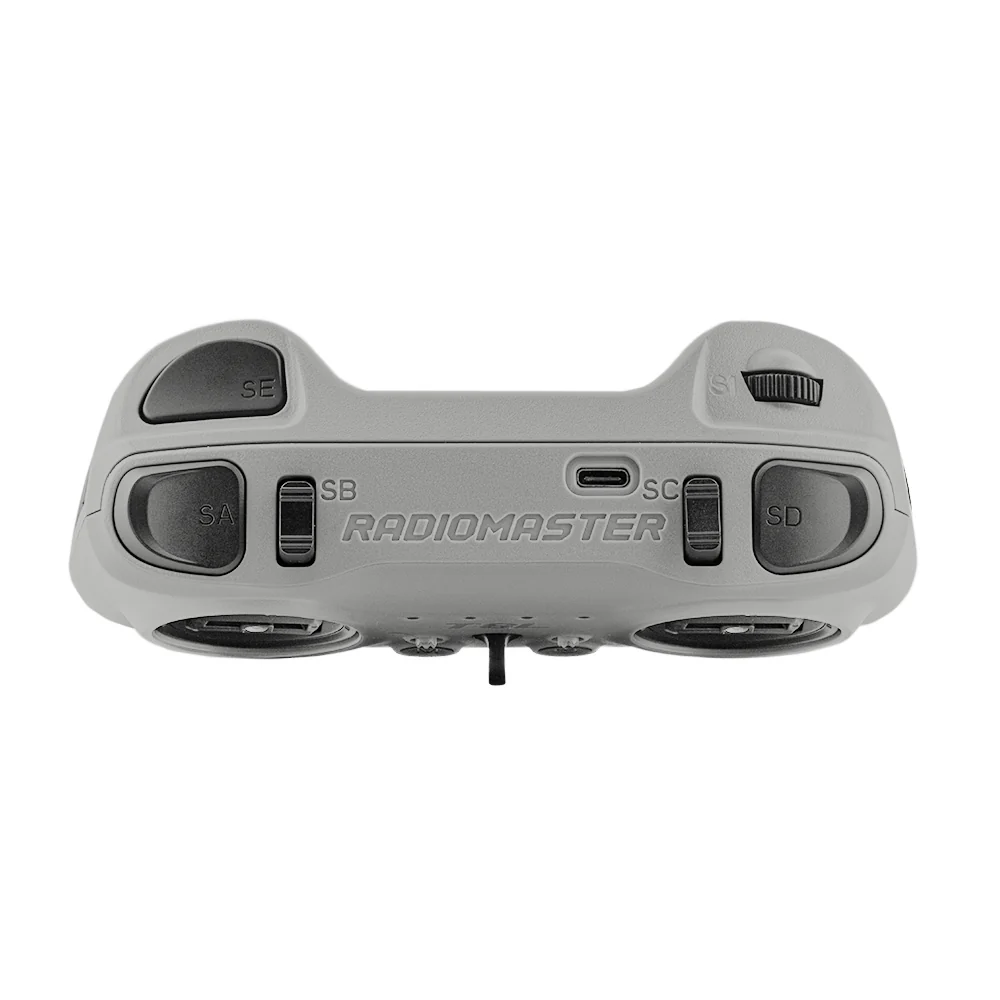

• USB-C port for charging, firmware updates, and simulator use
• Web-UI support (no screen required) for full configuration

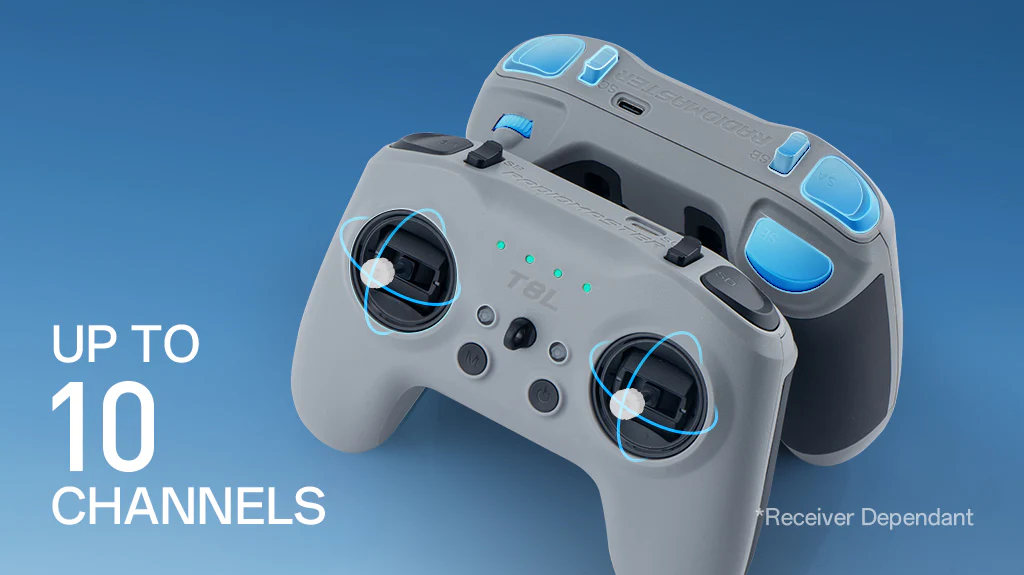

• Up to 10 channels supported (receiver-dependent)

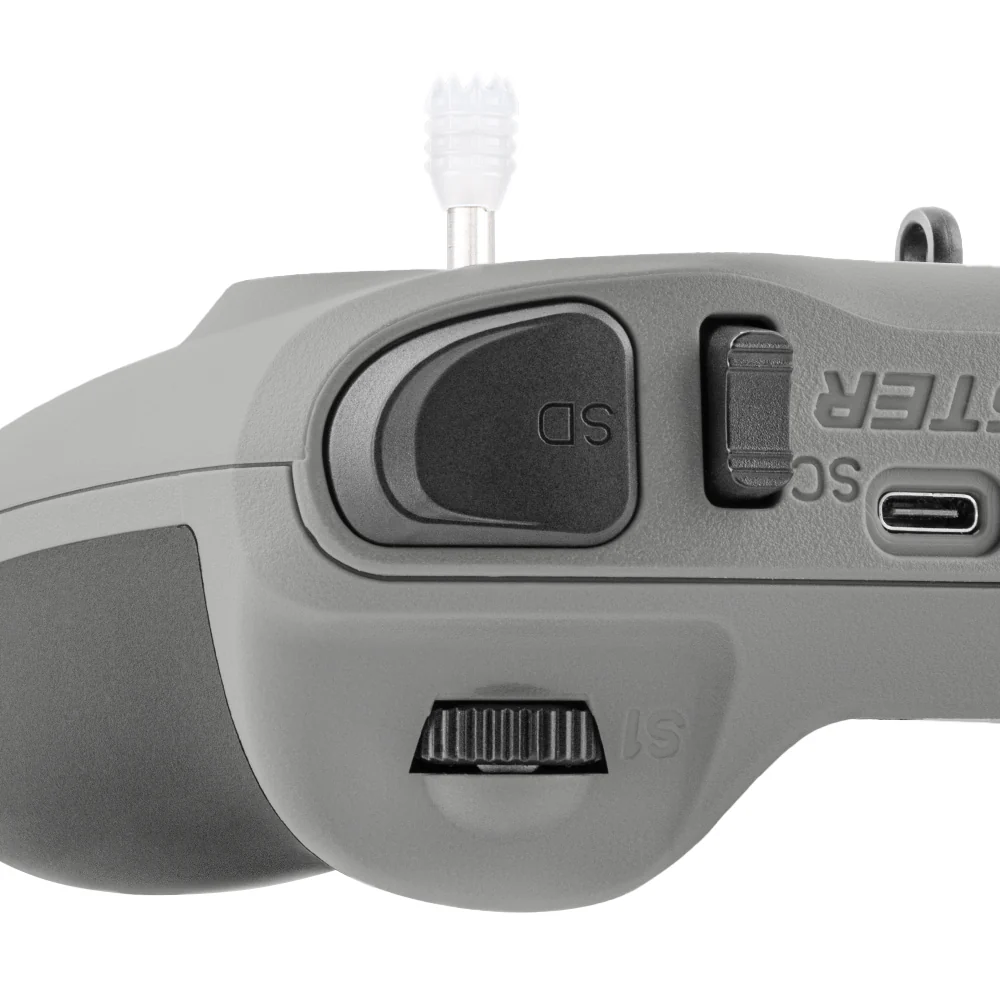

• Rear potentiometer slider for extra input or tuning

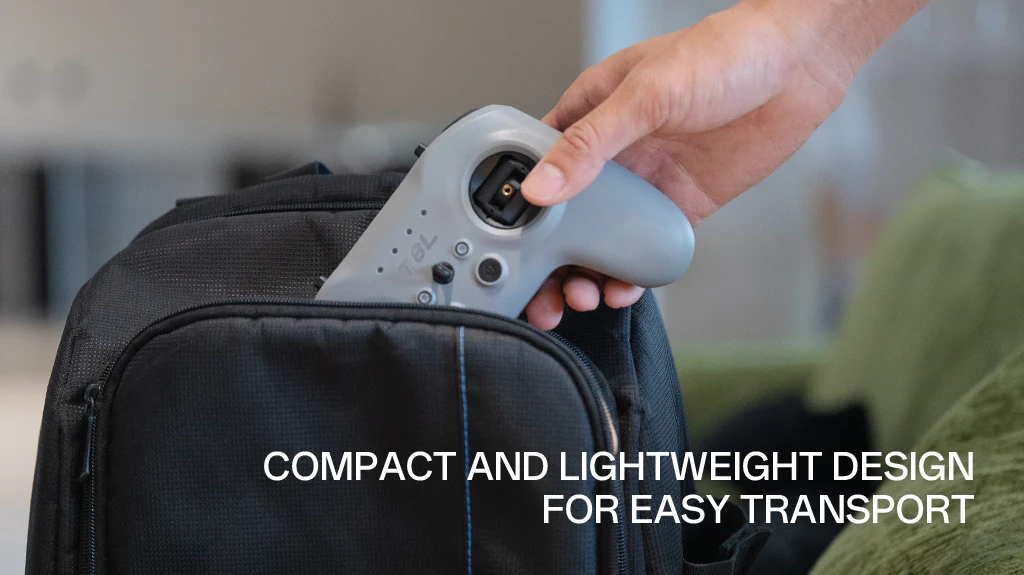

• Compact, lightweight design (just 204g) for easy transport
• LED-based interface for system status, battery level, and calibration
• Simulator-compatible—connect via USB
• Custom button and switch behavior settings via Web UI

Specification

• Item: T8L Radio Controller
• Size: 165*120*70mm
• Weight: 204g
• Frequency: 2.400GHz-2.480GHz
• RF Module: 2.4GHz ExpressLRS(SX1281)

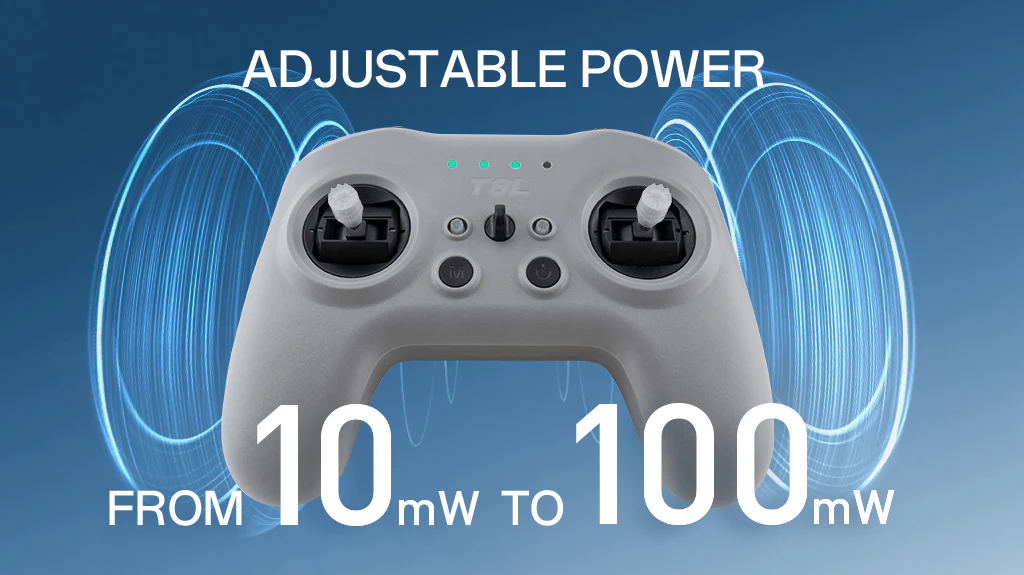

• Transmission power: Adjustable 10dBm(10mW) – Max 20dBm(100mW)
• Battery: 3.7v 18650 x 2 (Not Included)
• Charging: Built-in USB-C charging
• Firmware: T8L (Special T8L Edition, non-configurable)
• Colors: Blue, White, Grey
• Channels: Up to 10 channels (depending on the model/receiver)
• Gimbal: X5 Hall-effect, quad ball-bearing, nano gimbals

Associated Products

• 18650 Batteries
• AG01 NANO
• XR1 ExpressLRS Receiver
• XR2 ExpressLRS Receiver

Package Includes

• 1 * T8L Radio Controller
• 1 * USB-C Cable
• 4 * Low Tension Gimbal Springs
• 1 * User Manual
