RP2 V2 ExpressLRS 2.4ghz Nano Receiver

The RadioMaster RP series receivers are built-in a TCXO (temperature-compensated crystal oscillator) now, which ensures reliable, stable, and accurate signal reception, allowing for superior performance in demanding environments and enhancing the flight experience.

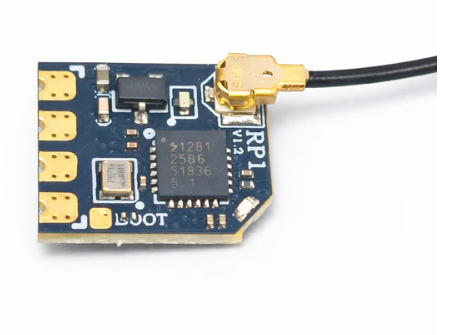

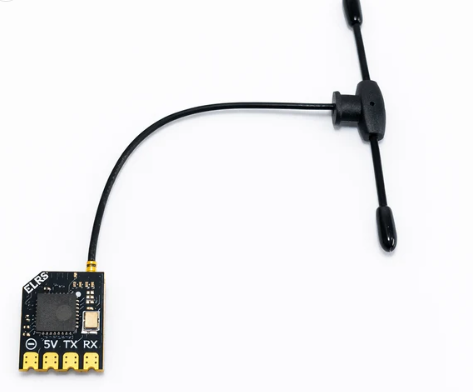

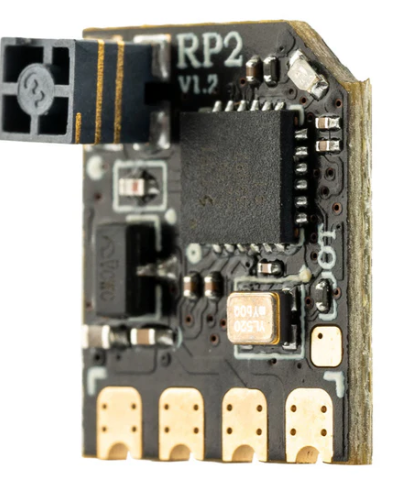

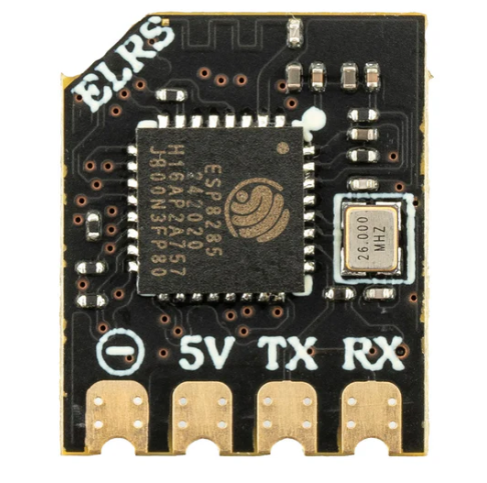

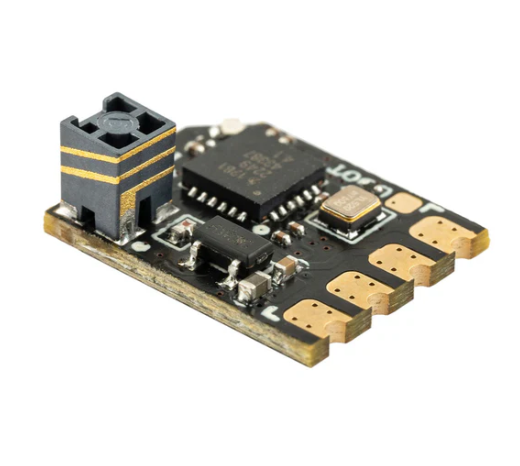

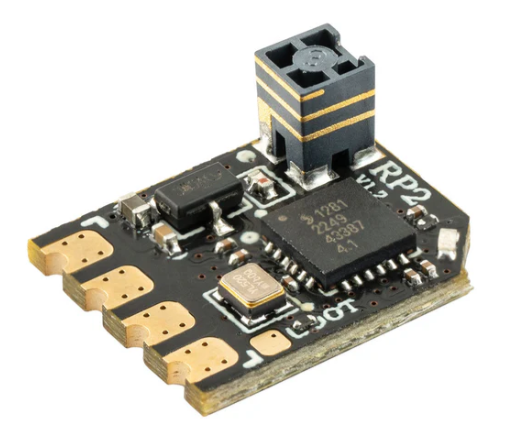

The  RP2 2.4GHz ELRS nano series receivers are open-source receivers based on ExpressLRS. The Nano receivers, first developed by Jye Smith from the ExpressLRS development team, feature ESP8285 MCU and SX1280 RF chip. The RP1 has a UFL antenna socket for full-range antenna use. The RP2 has a built-in ceramic antenna which is super light and small in size and ideal for racing.

The  RP2 feature WIFI built in so you can upgrade firmware by WIFI and configure the Receiver via the built-in WebUI with your PC or mobile phone.

Features

• Improved PCB design is better for heat dissipation.
• LED on the top side of PCB.
• Solder pads are improved and easier to solder to.
• Built-in a TCXO (temperature compensated crystal oscillator)
• Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS
