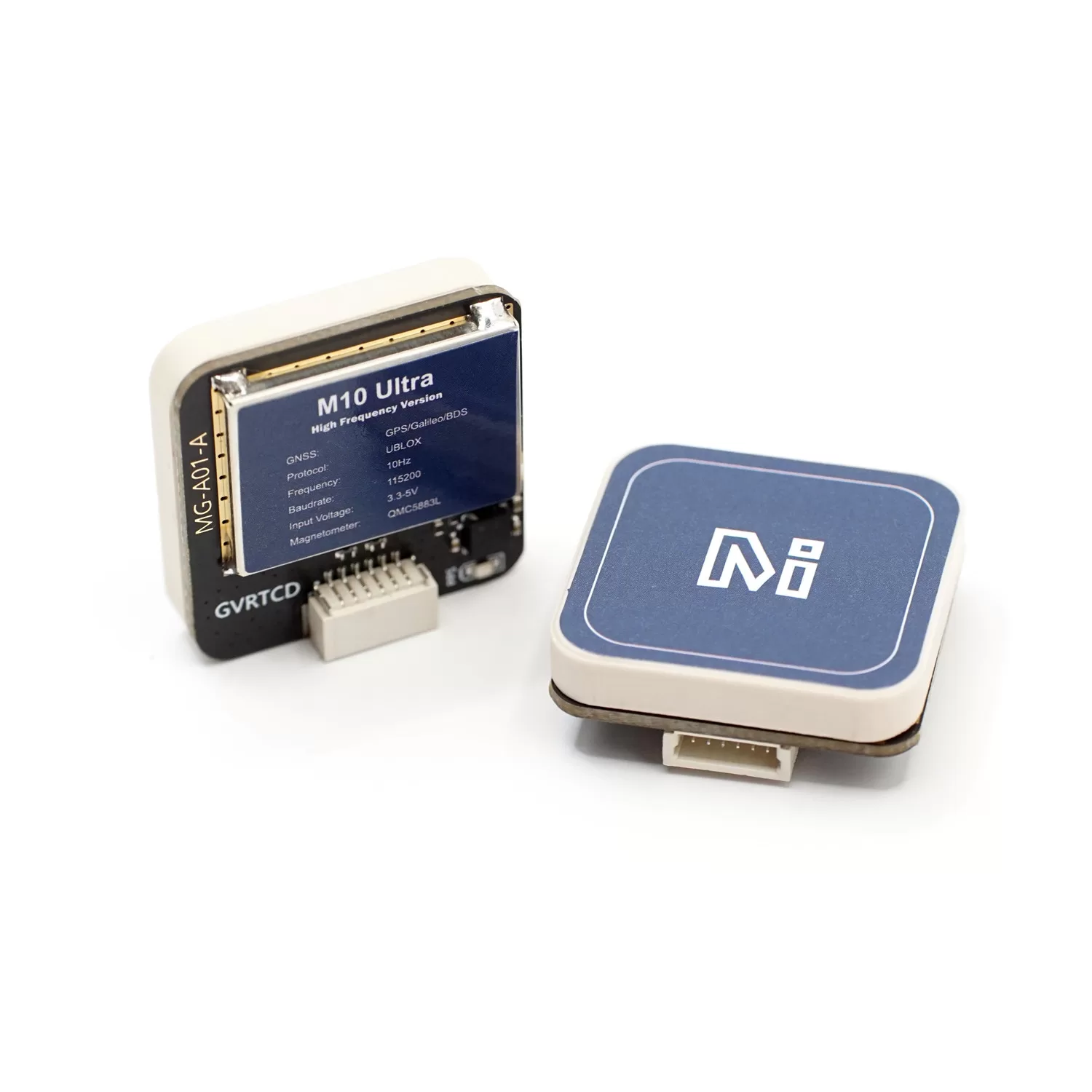

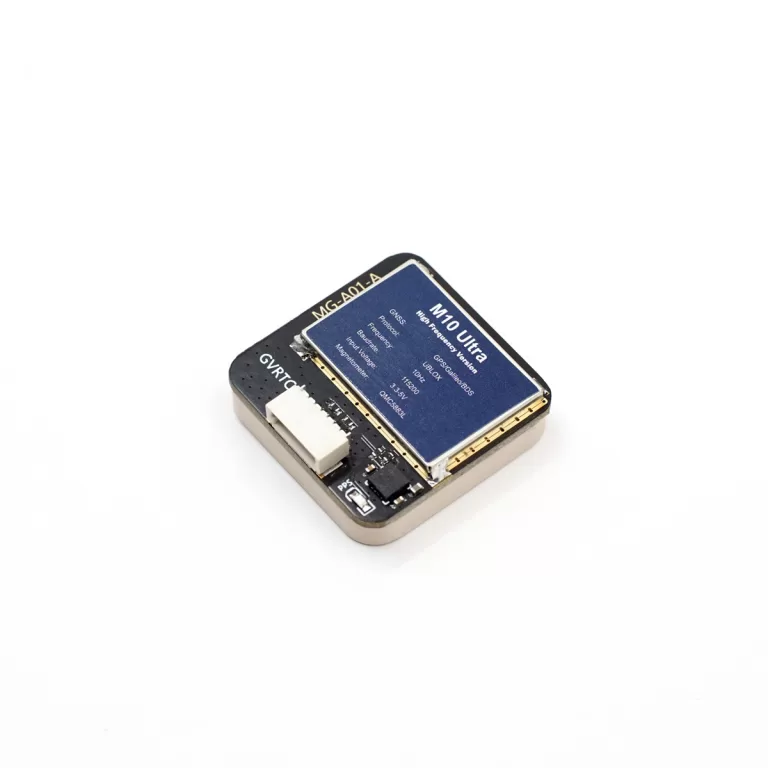

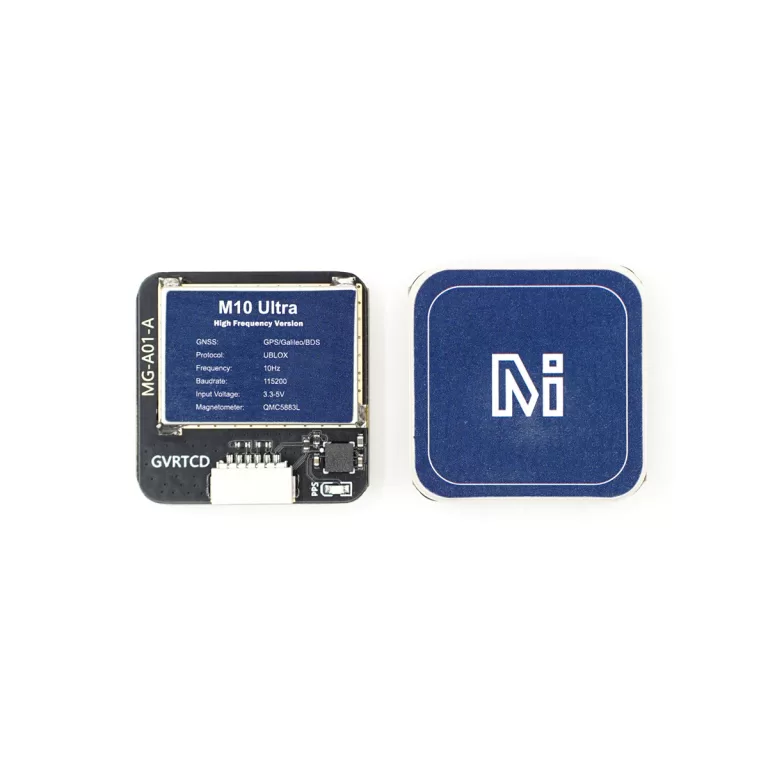

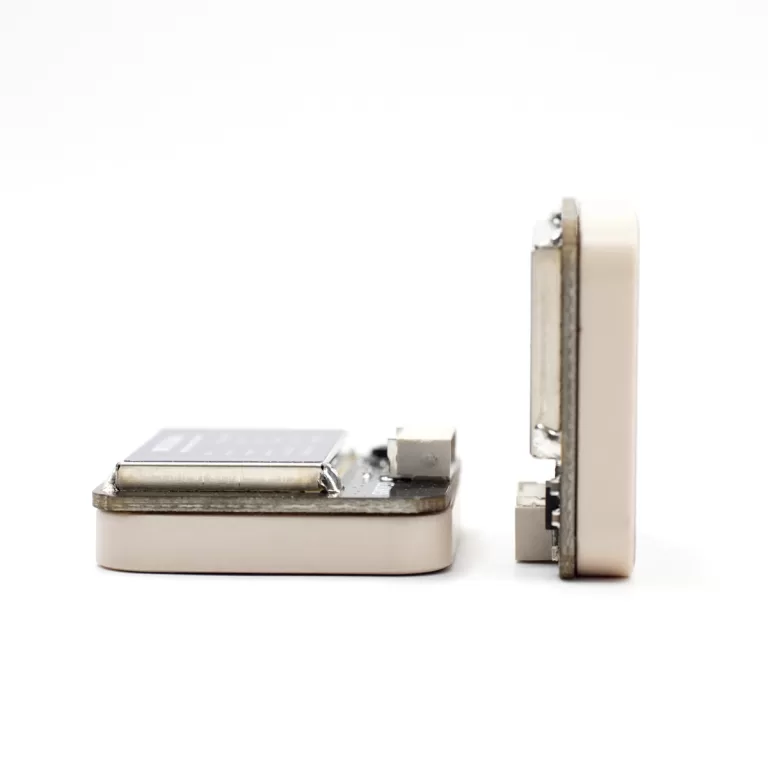

MG-A01(M10 Ultra) GNSS module integrates a special version of u-blox 10th generation receiver chip – M10050, which run with higher frequency than normal, and the magnetic sensor – QMC5883L. It supports all L1 GNSS signals (GPS/GLONASS/Galieo/BeiDou) and can use up to 32 satellites simultaneously for navigation.

The high-gain 25 x 25 x 4mm patch antenna provides the best performance.
Built-in flash, parameters can still be saved when module lost power.

GNSS Receiver: U-BLOX M10 (M10050)
Magnetic Compass: QMC5883L
Antenna: 25x25x4mm
GNSS System Support: GPS L1 /CA; GLONASS L10F; BeiDou B1L/B1C; Galileo E1B/C; QZSS L1 C/A/S; SBAS L1 C/A
Concurrent: 3 (GPS/BeiDou/Galileo(default) or GPS/GLONASS/Galileo), when Beidou B1L is turned off, it becomes possible to use 4 satellite systems at the same time: GPS+BeiDou(B1C)+GLONASS+Galileo
Max Navigation rate: 10Hz
Max satelite num: 32
Input Voltage: 5V
Current: 30mA
Output Interface(GPS): UART (3.3V LVTTL)
Interface(Compass): I2C
UART Baudrate: 115200(default)
Output Protocol: UBX-PVT(default)
PPS LED: Blue (Solid ON after powering on, blinking(1Hz) when GNSS get 3D fix)
