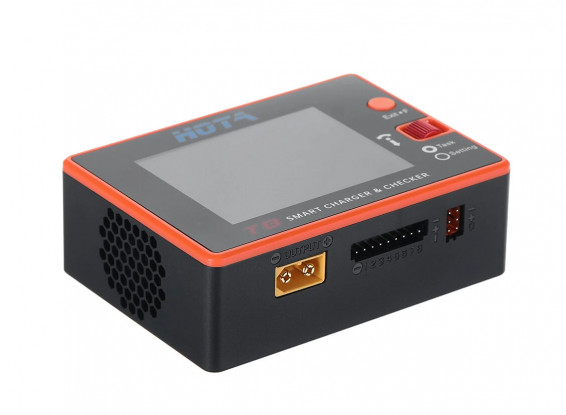

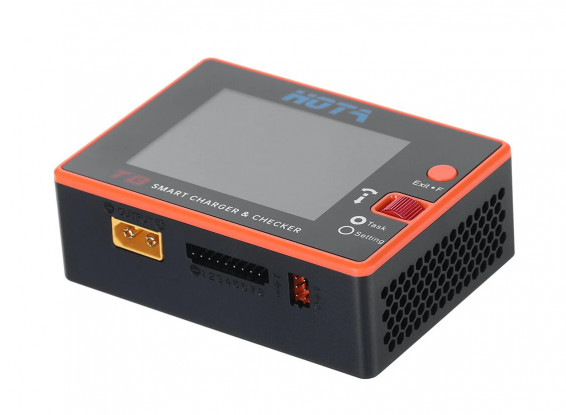

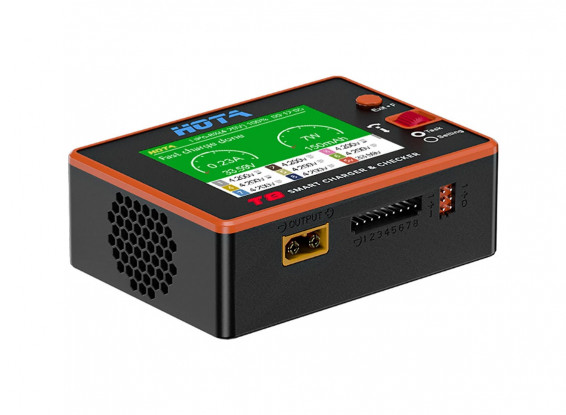

HOTA (DC Input) T8 650W 22A 1-8S LiPo/Li-ion/LiHV/NiMH/Pb Smart Charger & Checker with XT60 Port

Features:

1. Smart charging: The HOTA T8 charger and checker is equipped with intelligent features to ensure safe and efficient charging of your batteries.
2. High power: With a maximum power output of 650W and a current of 22A, this charger can quickly charge your batteries.
3. Versatile compatibility: The XT60 connector allows you to charge batteries with 1-8S cell configurations, making it suitable for a wide range of devices.
4. Easy to use: The user-friendly interface and intuitive controls make it easy for both beginners and experienced users.
5. Compact design: The T8 charger and checker is compact and portable, allowing you to take it with you wherever you go.

SPECIFICATION

Input Voltage: DC 7.0~35.0V@MAX 27A
Power Charge: 0.1-22A@650W
Discharge Power: 0.1-22A@650W Recyle External
0.1-3A@20W Normal mode
Balance Current: 1000mA@4.2V
Storage Temperature: -20~60°℃
Operating Temperature: 0~40°℃

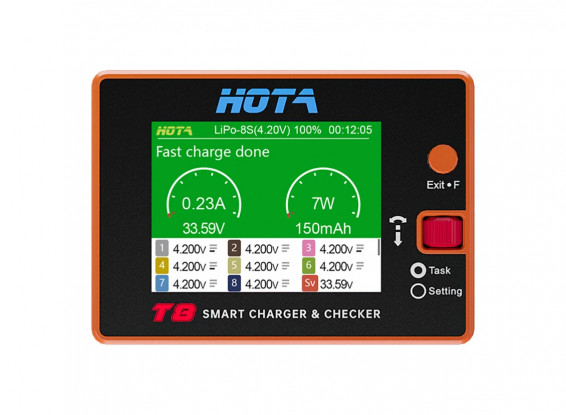

Screen Size: 2.8″ IPS 320×240 260000 colors
USB-A Output: 5V @ 2.1A Upgrade
Battery Type: Smart Battery/LiHv/LiPo/LiFe/Lilon/Lixx/LTO : 1~8S
NiZn/NiCd/NiMH:1~20S
PB: 1~12S
Eneloop : 1~20S
Measurer: PWM,880us-2200us@20-400Hz
PPM,880us-2200us*8CH@20-50Hz
SBUS,880us-2200us*16CH@20-100Hz
Voltage,1.0V-5.0V@1-8S
Internal resistance,1-99mR@1-8S
ESC,1-20A@1-35V MAX650W
Output: PWM,500us-2500us@20-1000Hz
PPM,880us-2200us*8CH@50Hz
SBUS,880us-2200us*16CH@74Hz
Power supply,0.5-22A@1-35V mode: CC+CV
Dimensions,97mm×69.5mm×34mm
Net Weight,194g approximate

INCLUDES

1 x HOTA T8 650W 22A XT60 1-8S Intelligent Charger Checker

1 x User Manual
