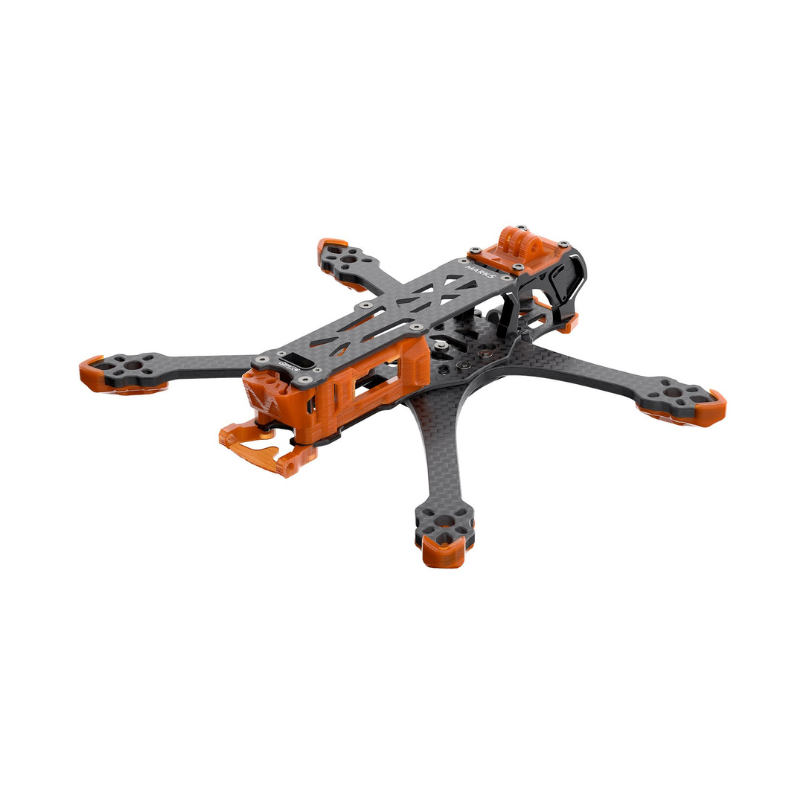

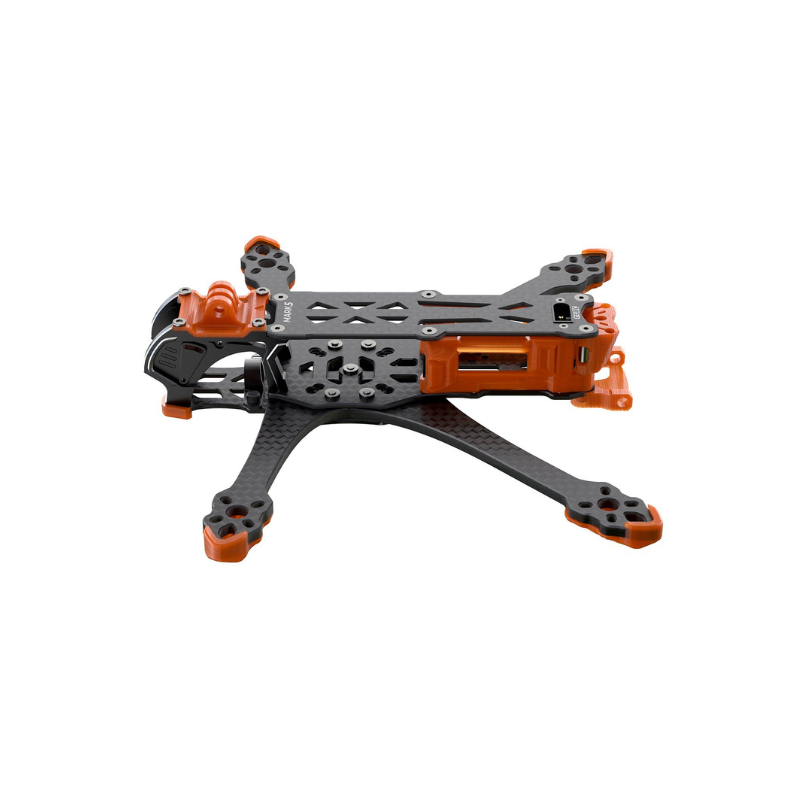

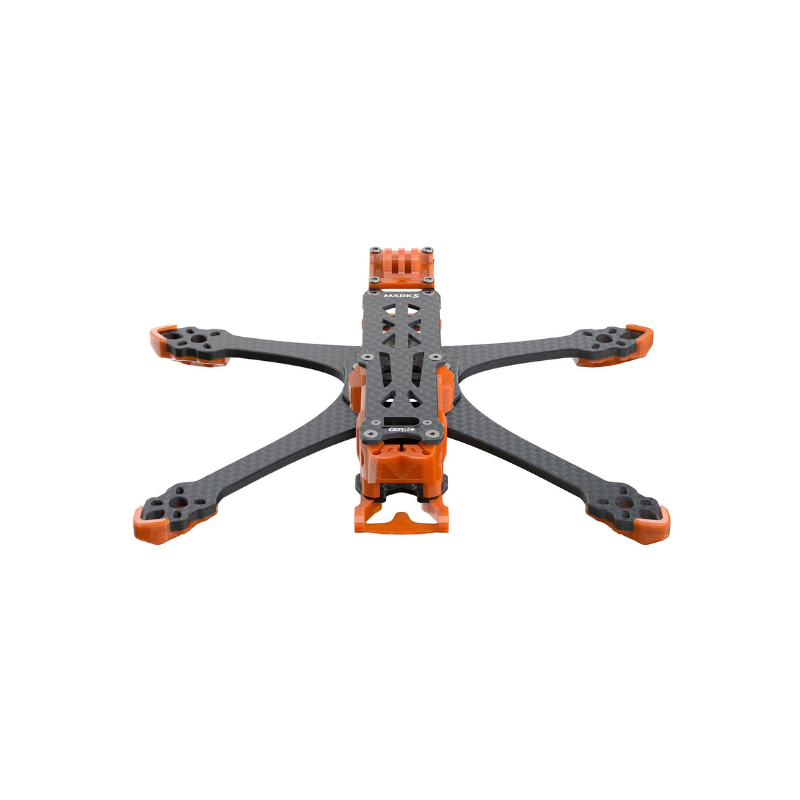

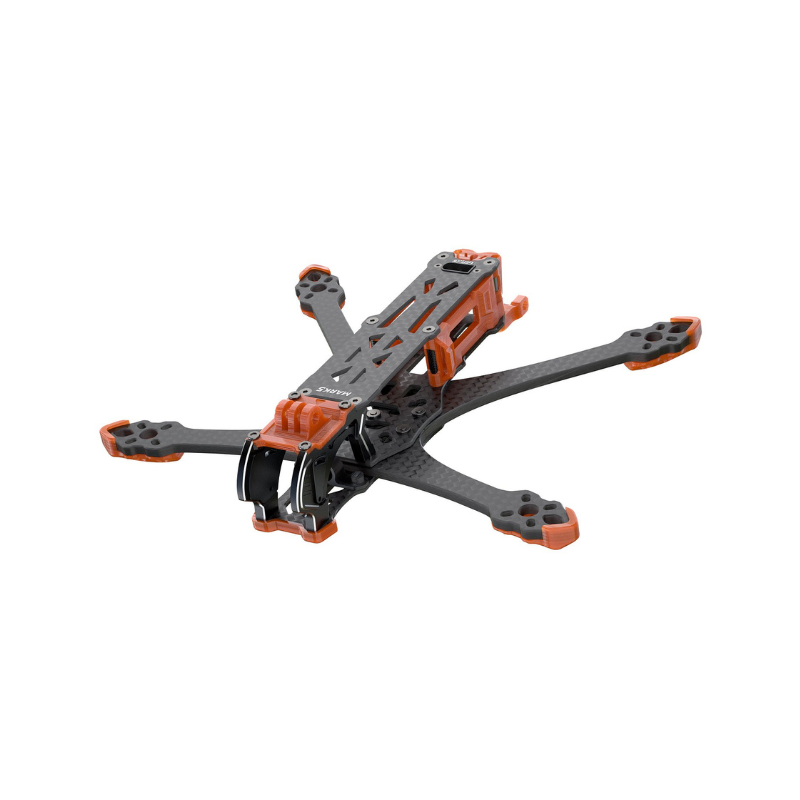

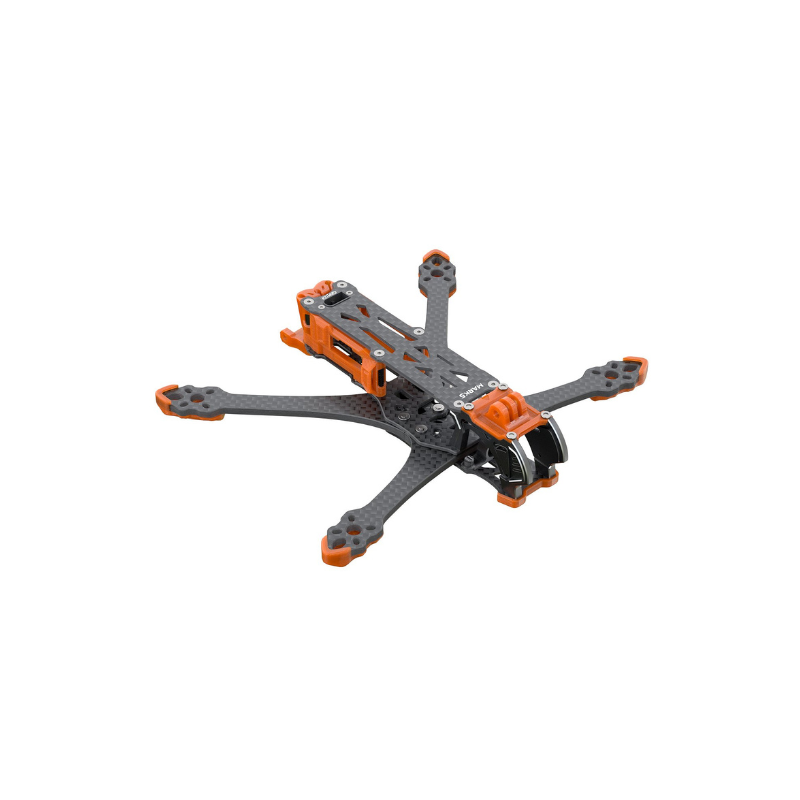

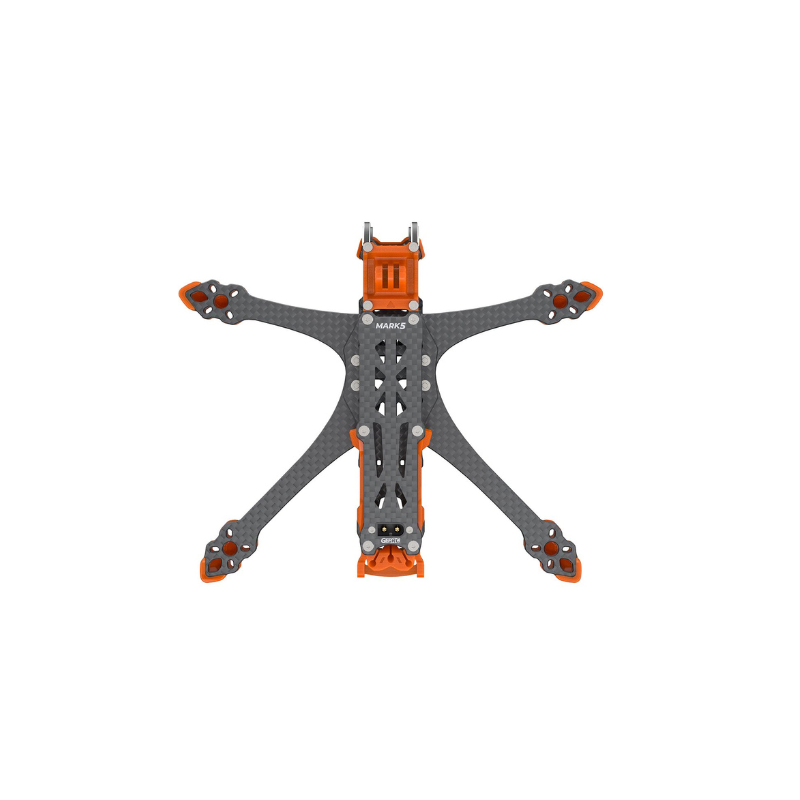

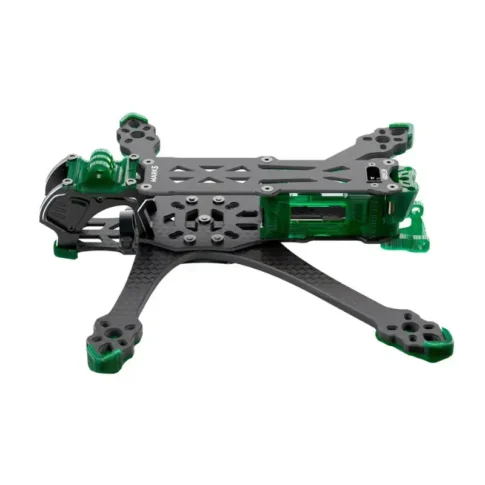

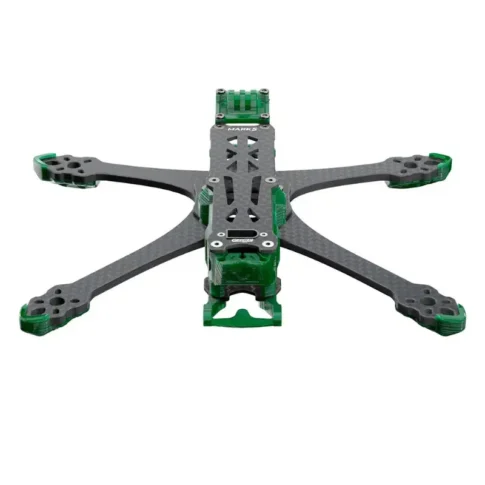

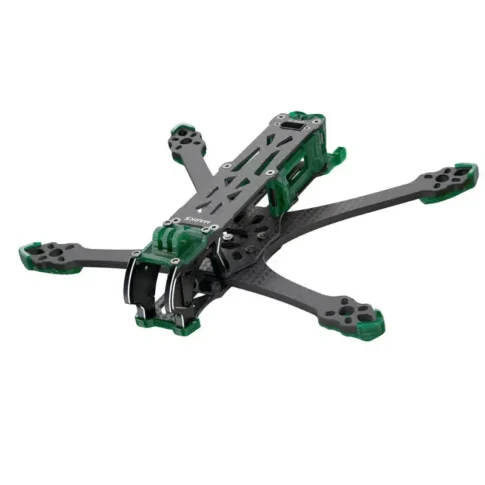

GEP-MK5 O4 Pro Frame

The GEPRC MARK5 O4 Pro frame is designed specifically for the DJI O4 Air Unit Pro.It features a redesigned camera mount and custom shock-absorbing silicone, improving compatibility and vibration resistance for a more stable flight experience.

FEATURES:

• Optimized for DJI O4 Air Unit Pro, offering enhanced compatibility.
• DC and wide X shapes, fit for a variety of flying situations.
• Two TPU camera mounts, compatible with all action cameras.
• Quick-release arms with just two screws for easy swapping.
• 3K carbon fiber frame that is lighter, stronger, and more durable.

SPECIFICATIONS:

• Model: GEP-MK5 O4 Pro DC Frame

• Wheelbase: 230mm
• Weight: 197.0g ± 10g
• Color: Coral Orange
• Top Plate Thickness: 2.5mm
• Arm Thickness: 5.0mm
• Bottom Plate Thickness: 2.5mm
• FC Mounting Pattern: 30.5mm * 30.5mm
• VTX Mounting Pattern: 20mm * 20mm / 25.5mm * 25.5mm / 30.5mm * 30.5mm
• Motor Mounting Pattern: 16mm * 16mm / 19mm * 19mm
• Camera Mounting Pattern: 20mm
• Recommended Prop：5-inch

• Model: GEP-MK5 O4 Pro wide X Frame

• Wheelbase: 225mm
• Weight: 165.1g ± 10g
• Color: Coral orange
• Top Plate Thickness: 2.5mm
• Arm Thickness: 5.0mm
• Bottom Plate Thickness: 2.5mm
• FC Mounting Pattern: 30.5mm * 30.5mm
• VTX Mounting Pattern: 20mm * 20mm / 25.5mm * 25.5mm / 30.5mm * 30.5mm
• Motor Mounting Pattern: 16mm * 16mm / 19mm * 19mm
• Camera Mounting Pattern: 20mm
• Recommended Prop：5-inch

PACKAGE CONTENTS:

• 1 x GEP-MK5 O4 Pro Frame
• 1 x 15*250mm heavy-duty Velcro straps
• 2 x Battery anti-slip pads
• 1 x 3D printouts pack
• 2 x 20*250mm rubber anti-slip straps
• 1 x L-shaped screwdriver 1.5mm
• 1 x L-shaped screwdriver 2mm
• 1 x L-shaped screwdriver 3mm
• 1 x M8 wench
• 1 x Screw pack
