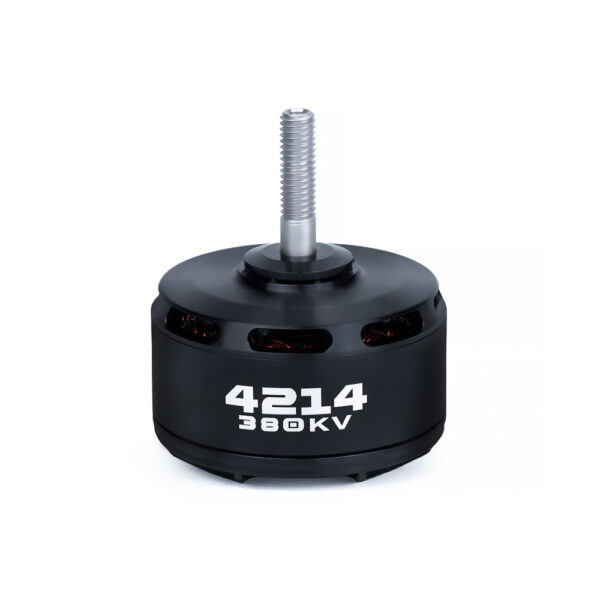

Axisflying 4214 Brushless Motors For 13-inch FPV Drone / Cinematic / Long Range / Loading Original price was: ₹8,000.00.Current price is: ₹7,500.00.
Back to products
GEPRC MATEN 5.8G 2.5W VTX Original price was: ₹12,700.00.Current price is: ₹12,500.00.
-4%
Click to enlarge

Flywoo GOKU F722 Pro V2 55A 32Bit 128K Stack (30×30) AM32 version

    1. FC Input Voltage: 7.4 – 26 V (2–6S LiPo)
    2. Mounting Pattern: 30.5 × 30.5 mm (M3)
    3. ESC Continuous Current: 55 A
    4. ESC Firmware: AM32 (AT32DEVF421)
    5. Supported Protocols: DShot300 / 600 / 1200; PWM 24–128 kHz

Original price was: ₹13,000.00.Current price is: ₹12,500.00.

Authorized Dealer of Top Drone Brands

Repair and Maintenance Support

Fast Shipping Across India

2 in stock

2 in stock

Compare
Add to wishlist
20 People watching this product now!

Payment Methods:

Description :

The GOKU F722 Pro V2 55A 32-bit 128K 30×30 Stack is a compact, high-performance FC + ESC combo designed for powerful and responsive FPV builds. It uses the STM32F722 processor running at up to 216 MHz, paired with an ICM42688 gyroscope for enhanced stability and accurate flight response. The stack offers eight motor outputs, dual 4-in-1 ESC sockets, and a snap-lock modular design for fast, solder-free installation, while still providing full solder pads for customization.

A built-in 16 MB black box enables detailed flight log storage for tuning and diagnostics. The board integrates dual BEC outputs—10 V/3 A and 5 V/3 A—suitable for powering VTX units and accessories. Its immersion-gold PCB ensures durability under high load and temperature. The AM32 ESC (AT32DEVF421) supports DShot300/600/1200 and PWM frequencies from 24 kHz to 128 kHz. This stack is also plug-and-play compatible with the DJI O3 Air Unit, making it ideal for advanced 5″ freestyle and cinematic builds.

Specification:

Item Type: FC + ESC Stack
Flash Memory: 16 MB (Black Box)
Input Voltage (V): 7.4V-26V/2-6S LiPo
Processor STM32F722
Barometer DPS310 / SPL06
UART 1/2/3/4/5/6
BEC (Y/N): Y(10V3A/5V3A)
Firmware: FLYWOO F722PRO
Mounting Hole (mm) M3 30.5×30.5mm
Length (mm): 45
Width (mm): 40
Weight (g): 30
Shipping Weight 0.15 kg
Shipping Dimensions 12 × 6 × 4 cm

Features:

  1. High-speed STM32F722 MCU running up to 216 MHz
  2. ICM42688 gyro for precise and stable flight
  3. Snap-lock socket design plus solder pads for flexible setup
  4. Large 16 MB black box for flight data logging
  5. Dual BEC outputs: 10 V/3 A + 5 V/3 A
  6. 8 motor outputs with dual 4-in-1 ESC support
  7. Durable immersion-gold PCB for heat and current resistance
  8. Plug-and-play DJI O3 Air Unit compatibility

Package Includes:

1 x GOKU F722 PRO V2 Flight Controller 1 x GOKU G55M BL32\ AM32 4in1 ESC 1 × FC + ESC Connection Cable 1 × DJI O3 Connection Cable 1 × Buzzer Connection Cable 1 × Receiver Connection Cable 1 × GPS Connection Cable 1 × Camera Connection Cable 1 × Analog VTX Transmission System Connection Cable 1 × XT60 Power Cable 9 × Shock-Absorbing Ball 5 × Nylon Studs 1 × Capacitor 5 × M3×22 Screws 5 × Rubber Ring 5 × Anti-Slip Nuts
