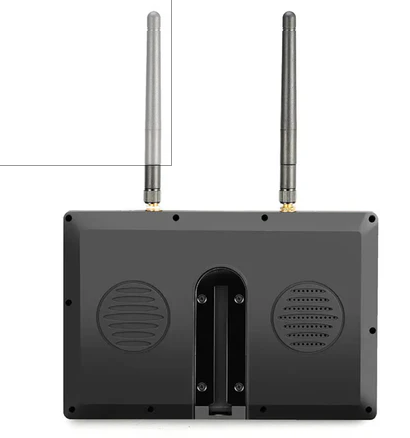

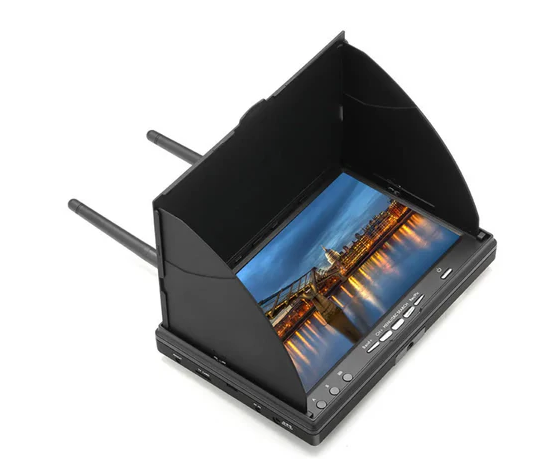

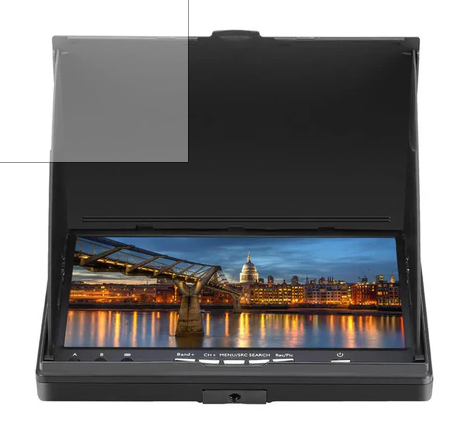

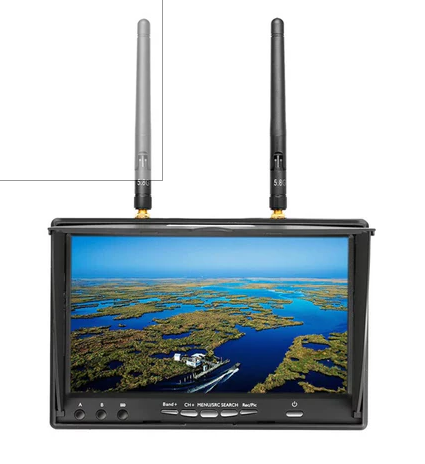

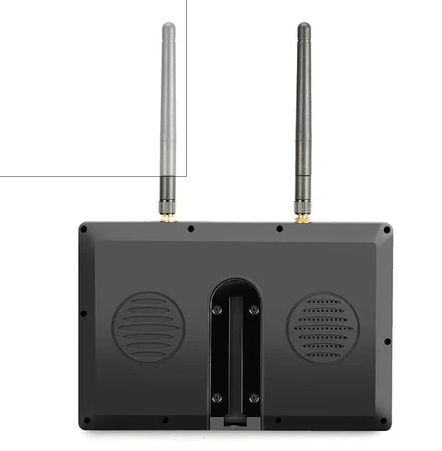

EACHINE LCD5802D FPV Monitor 7 Inch 5.8G 40CH with DVR Build-in Battery

The Eachine EV800D is a versatile and affordable analog FPV goggle designed for hobbyists and drone enthusiasts. It offers a clear, high-quality video feed with a built-in DVR for recording your flights. Its ergonomic design and adjustable headband ensure comfort during extended use, while its large screen provides an immersive viewing experience.



Original price was: ₹14,500.00.Current price is: ₹13,500.00.

Authorized Dealer of Top Drone Brands

Repair and Maintenance Support

Fast Shipping Across India

1 in stock (can be backordered)

1 in stock (can be backordered)

Compare
Add to wishlist
10 People watching this product now!

Payment Methods:

Description :

Features

  • With DVR function
  • Built-in Dual Receiver for best reception
  • Dual buffered AV outputs
  • Not affect by 2.4GHz R/C Radios
  • AV Receiver with Diversity inputs
  • Small, lightweight, durable
  • 5 Bands and a total of 40 Channels
  • Built-in battery, easy to carry and outdoor use
  • A key to automatic signal search, Simple operation
  • Work status OSD display: Always be aware of the device working condition.

Notice: It can’t receive 2 different channels at the same time



Specifications

  • Item Name: LCD5802D Monitor
  • Built-in 5.8Ghz Dual diversity receiver automatically for best reception
  • Built-in 2CH 5.8Ghz AV output and 1CH AV input
  • Built-in high-performance Li-POLYMER Battery: 2000mAH/7.4V
  • Work status OSD display: RSSI indication; Battery indicator; Channel indication
  • A key to automatic signal search
  • Support English menu
  • Format: JPEG, AVI
  • Screen size:7”
  • Screen type:TFT LCD Screen/long life, LED backlight
  • Resolution: 800*480
  • Brightness: 600cd/m2
  • View Angle:140/120degree (Horizontal/Vertical)
  • Size:180mm x 120mm x 25mm(Note:Sunshield height:110mm)
  • Working Voltage: DC 7~16V
  • Power Consumption: max 650 mA @12V
  • Battery charging current : 850mA @12V ( max )
  • Working temperature: -10℃~+ 65 ℃

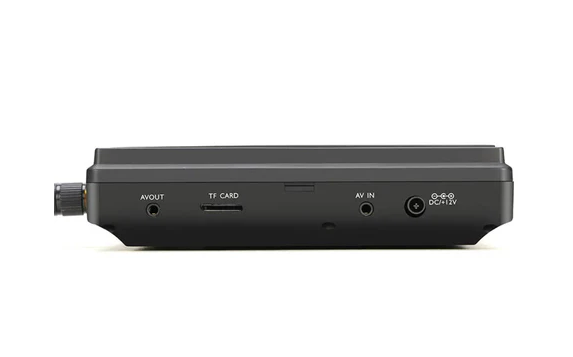

  • Connectors:RP-SMA female(outer needle)
  • Antennas Connectors:RP-SMA male (inner hole)
  • Support up to 32G, C10 SD Card

Includes

  • 1x LCD5802D Monitor
  • 1x Accessories
  • 1x AU plug for charging
