DJI FPV Air Unit V1

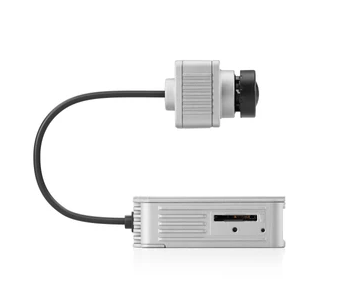

The DJI FPV Air Unit is a high-performance digital video transmission system designed for FPV drones. It combines a high-definition camera, a digital video transmitter (VTX) with DVR capabilities, and a built-in remote control receiver into a single rugged aluminum module.

Original price was: ₹16,000.00.Current price is: ₹15,000.00.

Authorized Dealer of Top Drone Brands

Repair and Maintenance Support

Fast Shipping Across India

1 in stock

1 in stock

Compare
Add to wishlist
10 People watching this product now!

Payment Methods:

Description :

Air Unit

  • 1080p 60fps / 720p 120fps DVR
  • Powerful DJI HDL FPV Transmission System
  • Embedded RC Receiver
  • Multi Antenna Technology
  • Durable Aluminum Housing
  • Maximum 8 Channels



Camera

  • 150° Ultra-Wide-Angle Lens
  • Three Picture Modes for Different Scenarios (Standard/Racing/LED)
  • Adjustable Brightness & Saturation



Specifications

  • Input Power 7.4-17.6 V, about 4-9 W
  • Operating Frequency: 5.725-5.850 GHz
  • Transmitter Power (EIRP) FCC/SRRC: <30 dBm;
  • CE: <14 dBm
  • Min. Latency (end-to-end) Low Latency Mode (720p/120fps): <28 ms
  • High Quality Mode (720p/60fps): <40 ms
  • Max. Transmission Distance FCC/SRRC: <4 km; CE: <0.7 km
  • Video Format MP4 (Video format: H.264; Audio format: ACC-LC)
  • I/O Interface USB-C, MMCX, 3-in-1 port, microSD card slot
  • Supported Flight Control System F3, F4, F7
  • Operating Temperature Range 32°to 104°F (0° to 40°C)
  • Weight: Air Unit (Camera included): 45.8 g
  • Air Unit Dimensions: 44×37.8×14.4mm
  • Camera Dimensions: 27.4×21.1×20.1mm
  • Coaxial Cable Length: 100mm

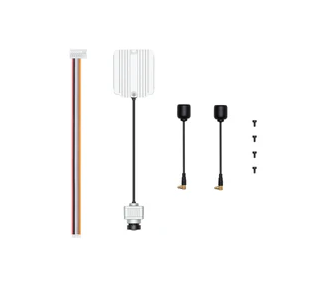

    Includes

    • 1x Camera
    • 1x Air Unit Module
    • 2x Air Unit Antenna (MMCX Elbow)
    • 1x Coaxial Cable
    • 1x Air Unit 3in1 Cable
